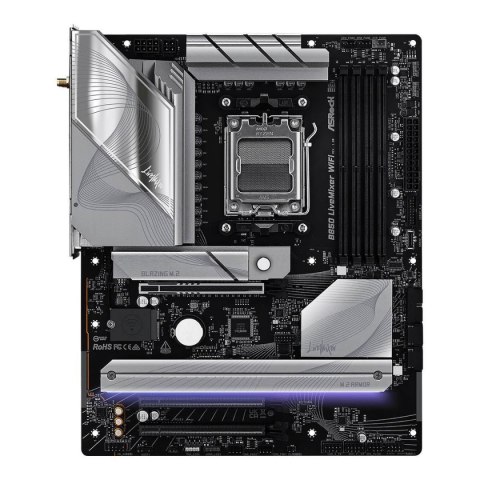

Płyta ASrock B850 LiveMixer WiFi /AMD B850/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/AM5/ATX ASRock

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Format pły...: ATX

BI...: - 256Mb AMI UEFI Legal BIOS with GUI support

Chipset płyty główn...: AMD B850

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8000+ (OC)

Uwagi do pamięci R...: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 2 x SATA3 6.0 Gb/s Connectors, Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Supports NVMe SSD as boot disks, M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with, 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series, processors, If M2_3 is occupied, PCIE3 will be disabled., Requires additional M.2 NVMe expansion cards to support RAID 10

Wbudowana karta graficz...: Brak lub AMD RDNA™ 2 (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max., resolution up to 4K 120Hz

Zintegrowana karta dźwięko...: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: - Nahimic Audio, - Individual PCB Layers for R/L Audio Channel, - Impedance Sensing on Rear Out port

Złącza PCI Express x...: 3

Uwagi do złącz P...: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 2 x PCIe 4.0 x16 Slot (PCIE2 and PCIE3), supports x4 mode, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - 15µ Gold Contact in VGA PCIe Slot (PCIE1), PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8, with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2), series processors., If M2_3 is occupied, PCIE3 will be disabled., Supports NVMe SSD as boot disks

Port L...: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Uwagi do karty sieciow...: Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control

Maksymalna ilość portów USB 2...: 12

Maksymalna ilość portów USB 3...: 11

Porty USB na panelu tyln...: 8x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: - 802.11be 2x2 Wi-Fi 7 Module, - Supports 2.4GHz/5GHz/6GHz frequency band, - Supports 160MHz channel bandwidth with 6GHz frequency band, - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO, The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no, driver available for Windows® 10. The availability of the 6GHz band will, depend on the different regulation status of each country and region., It will be activated (for supported countries) through Windows® Update and, software updates once available.

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: Thermistor Cable Header, Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Ports, SPI TPM header (14-1pin), Front Panel Audio Connector

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Wyposażenie dodatko...: - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 1 x Thermistor Cable

Informacje dodatko...: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
