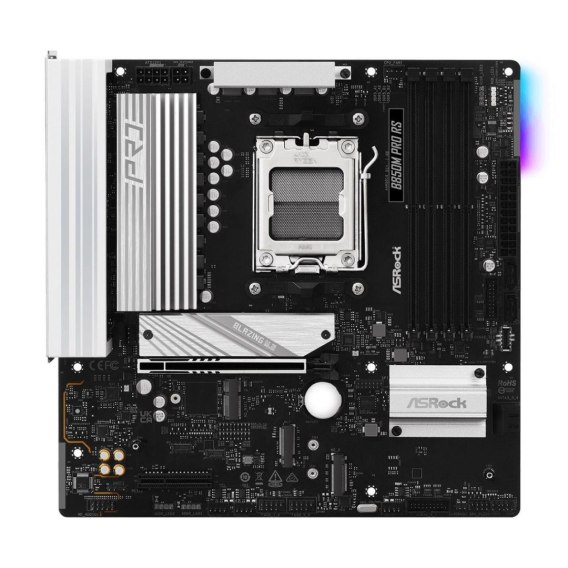

Płyta ASrock B850M Pro RS /AMD B850/DDR5/SATA3/M.2/USB3.1/PCIe5.0/AM5/mATX ASRock

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Format pły...: Micro-ATX

BI...: - 256Mb AMI UEFI Legal BIOS with GUI support

Chipset płyty główn...: AMD B850

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8000+ (OC)

Uwagi do pamięci R...: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280, PCIe Gen5x4 (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports NVMe SSD as boot disks, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with, 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2), series processors., If M2_3 is occupied, PCIE2 will be disabled., Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Requires additional M.2 NVMe expansion cards to support RAID 10

Wbudowana karta graficz...: Brak lub AMD RDNA™ 2 (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max., resolution up to 4K 120Hz

Zintegrowana karta dźwięko...: Realtek ALC897

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: - Nahimic Audio, - 7.1 CH HD Audio

Złącza PCI Express x...: 1

Złącza PCI Express ...: 1

Uwagi do złącz P...: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, Chipset:, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - 15µ Gold Contact in VGA PCIe Slot (PCIE1), PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2), series processors., If M2_3 is occupied, PCIE2 will be disabled., Supports NVMe SSD as boot disks

Port L...: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Uwagi do karty sieciow...: Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 9

Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.0 Type-C

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: SPI TPM header (14-1pin), Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, Front Panel Audio Connector, BIOS FlashBack button , 2x Antenna Mounting Points

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 244 x 244

Opakowan...: BOX

Wyposażenie dodatko...: - 2 x SATA Data Cables, - 1 x Screw for M.2 Socket

Informacje dodatko...: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
