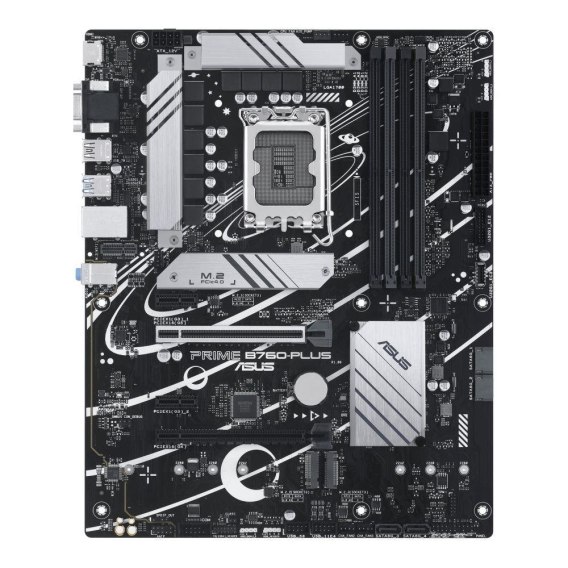

Płyta Asus PRIME B760-PLUS /B760/DDR5/SATA3/M.2/USB3.2/PCIe5.0/s.1700/ATX Asus

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700)

Uwagi do proceso...: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: ATX

BI...: 128 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty główn...: Intel® B760

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-7200+ (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600, DDR5-5400, DDR5-5200, DDR5-5000, DDR5-4800

Uwagi do pamięci R...: Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, Supported memory types, data rate (speed), and number of DRAM modules, vary depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support under the Support tab or visit

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2

Uwagi do kontrolera SA...: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode), - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort, VGA

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4., Supports 4K@60Hz as specified in HDMI 2.1.

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 5x Audio Jack, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękow...: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: Intel® 13th & 12th Gen Processors:, - 1 x PCIe 5.0 x16 slot, Intel® B760 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 3.0 x1 slot, To ensure compatibility of the device installed, please refer to

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 7

Porty USB na panelu tyln...: 2x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port Wi-...: Nie

Port Bluetoo...: Nie

Uwagi do WiFi / ...: Vertical M.2 slot only (Key E, CNVi & PCIe), Wi-Fi module is sold separately

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x Addressable Gen 2 header, AURA RGB header, Thunderbolt™ (USB4®) header

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, 1 x User guide

Informacje dodatko...: Manageability: WOL by PME, PXE, Operating System: Windows® 11, Windows® 10 64-bit
