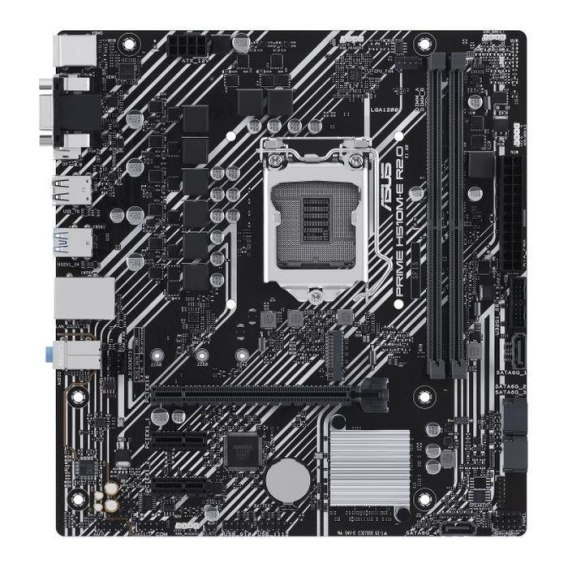

Płyta Asus PRIME H510M-E R2.0 /H470/DDR4/SATA3/M.2/USB3.0/PCIe4.0/s.1200/mATX Asus

Gniazdo proceso...: Socket 1200

Obsługiwane typy procesor...: Intel Core i3 10th Generation, Intel Core i5 10th Generation, Intel Core i7 10th Generation, Intel Core i9 10th Generation, Intel Core i3 11th Generation, Intel Core i5 11th Generation, Intel Core i7 11th Generation, Intel Core i9 11th Generation, Intel Celeron™ (Socket 1200), Intel Pentium™ (Socket 1200)

Uwagi do proceso...: Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: Micro-ATX

BI...: 128 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty główn...: Intel® H470

Ilość złącz pamięci DD...: 2

Maksymalna wielkość pamię...: 64 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933, DDR4-3000 (OC), DDR4-3200 (OC)

Uwagi do pamięci R...: Supports Intel® Extreme Memory Profile (XMP), 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133, natively, others will run at the maximum transfer rate of DDR4 2666MHz, 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/, 2400/2133, Supported memory types, data rate (speed), and number of DRAM modules, depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SA...: Chipset: 4x SATA III 6Gb/s + 1x M.2

Uwagi do kontrolera SA...: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 610/620/630/730/750 (zależy od procesora)

Gniazda karty graficzn...: VGA, HDMI, DisplayPort

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types, Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max, update, Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of, 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out, 3x Audio Jack

Uwagi do karty dźwiękow...: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium Japanese audio capacitors, Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output

Złącza PCI Express x...: 1

Złącza PCI Express ...: 2

Uwagi do złącz P...: 1 x PCIe 4.0/3.0 x16 slot:, - Intel® 11th Gen processors support PCIe 4.0 x16, - Intel® 10th Gen processors support PCIe 3.0 x16, Intel® H470 Chipset:, - 2 x PCIe 3.0 x1 slots

Port L...: 1x Gigabit LAN 100/1000 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 6

Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty)

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Port klawiatury PS/2, Port klawiatury PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin Chassis Fan header, 2x AURA Addressable Gen 2 headers, 2x AURA RGB headers, Clear CMOS header, Speaker header, SPI TPM header (14-1pin), 10-1 pin System Panel header

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 226 x 211

Opakowan...: BOX

Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x User manual

Informacje dodatko...: Operating System: Windows® 10 64-bit
