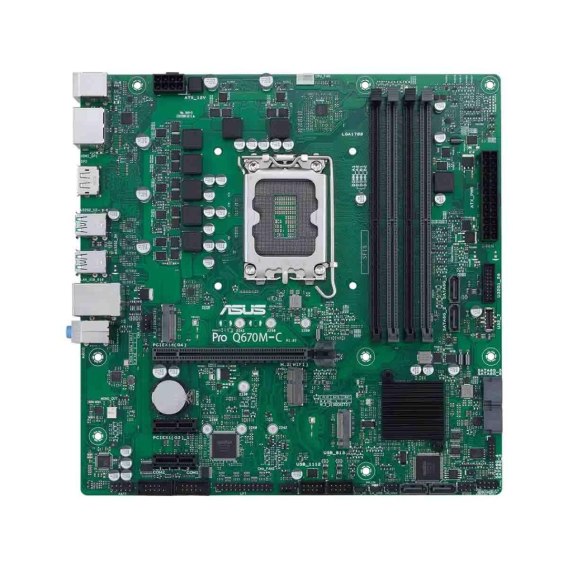

Płyta Asus Pro Q670M-C-CSM /Q670/DDR5/SATA3/M.2/USB3.1/PCIe4.0/s.1700/mATX Asus

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700)

Uwagi do proceso...: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: Micro-ATX

BI...: 256 Mb Flash ROM

Chipset płyty główn...: Intel® Q670

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 128 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4800

Uwagi do pamięci R...: Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Actual Memory frequency support depends on the CPU types and DRAM modules,, (Qualified Vendors Lists)

Zintegrowany kontroler SA...: Chipset+CPU: 6x SATA III 6Gb/s + 2x M.2

Uwagi do kontrolera SA...: Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® Q670 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - 6x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports, NVMe RAID 0/1/5, SATA RAID 0/1/5/10, Intel® Rapid Storage Technology supports Intel® Optane Memory H Series, on PCH attached M.2 slots

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics / Intel® Xe Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, 2x DisplayPort

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, VGA resolution support depends on processors' or graphic cards' resolution

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack

Uwagi do karty dźwiękow...: Supports: Jack-detection, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, A chassis with an HD audio module in the front panel is required, to support 7.1 Surround Sound audio output.

Złącza PCI Express x...: 1

Złącza PCI Express ...: 2

Uwagi do złącz P...: Intel® 13th & 12th Gen Processors:, - 1 x PCIe 4.0/3.0 x16 slot, Intel® Q670 Chipset:, - 2 x PCIe 3.0 x1 slots, Please check PCIe bifurcation table in support site.

Port L...: 1x Gigabit LAN 100/1000 Mb/s (Intel®)

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 6

Porty USB na panelu tyln...: 4x USB 3.1 + 2x USB 2.0

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port PS...: Port klawiatury PS/2, Port myszy PS/2

Port szeregowy (CO...: 2x wewnętrzne gniazdo portu COM

Port równoległy (LP...: 1x wewnętrzne gniazdo portu LPT

Inne porty i gniaz...: 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, Clear CMOS header, Speaker header, DIS ME jumper

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 244 x 244

Opakowan...: BOX

Wyposażenie dodatko...: 2x SATA 6Gb/s cables, 1x I/O Shield, 1x M.2 SSD screw package, 1x M.2 Key E screw package, 1x Support DVD, 1x ACC Express Activation Key Card, 1x User guide

Informacje dodatko...: Wi-Fi module is sold separately, TPM 2.0 IC onboard, Manageability: WOL by PME, PXE, Operating System: Windows® 11, Windows® 10 64-bit
