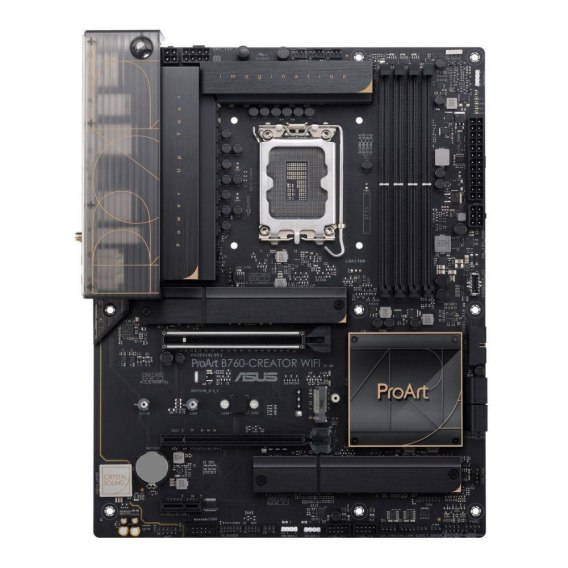

Płyta Asus ProArt B760-CREATOR WIFI /B760/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX Asus

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)

Uwagi do proceso...: Supports Intel® 10 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost, Max Technology 3.0**, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: ATX

BI...: 128 Mb WOL by PME, PXE

Chipset płyty główn...: Intel® B760

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Uwagi do pamięci R...: Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules, vary depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SA...: Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280/22110, Intel® B760 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10, M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run, PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by, by manually enabled in BIOS

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types, Supports 4K@60Hz as specified in HDMI 2.1, Support max. 8K@60Hz as specified in DisplayPort 1.4

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: Intel® 13th & 12th Gen Processors:, - 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® B760 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 3.0 x1 slot, PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2, runs at PCIe x4 mode by manually enabled

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®), 1x 1 Gigabit LAN Intel®

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 9

Porty USB na panelu tyln...: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, AURA RGB header, Clear CMOS header, SPI TPM header (14-1pin), Thermal Sensor header, Thunderbolt header

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (6-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 2 x M.2 Rubber packages, 1 x ProArt ruler, 1 x Q-connector, 1 x ACC Express Activation Key Card, 1 x User guide

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Operating System: Windows® 11, Windows® 10 64-bit
