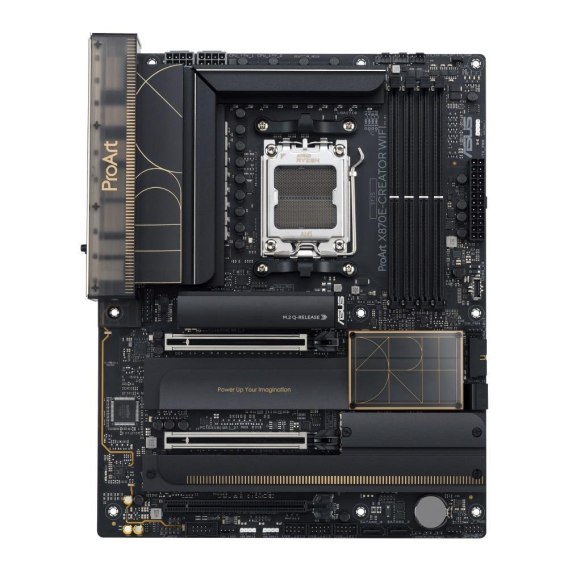

Płyta Asus ProArt X870E-CREATOR WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX Asus

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Format pły...: ATX

BI...: 256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Chipset płyty główn...: AMD X870

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Uwagi do pamięci R...: Supports up to 8000+MT/s(OC) with Ryzen 9000, 8000 & 7000 Series, ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate(Speed), and number of DRAM module vary, depending on the CPU and memory configuration, for more information refer, Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2

Uwagi do kontrolera SA...: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD X870E Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, PCIEX16(G5)_2 slot shares bandwidth with M.2_2, AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/, 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000series CPU

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, 2x USB4 Type-C

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports max. 8K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort, adapter cable. VGA resolution support depends on processors' or graphic, cards' resolution

Zintegrowana karta dźwięko...: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for, headphone and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output

Złącza PCI Express x...: 3

Uwagi do złącz P...: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), AMD X870E Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), Please check the PCIe bifurcation table on the support, PCIEX16(G5)_2 shares bandwidth with M.2_2 slot, To ensure compatibility of the device installed, please refer to

Port L...: 1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 7

Maksymalna ilość portów USB 3...: 11

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 1x USB 2.0 + 7x USB 3.1 + 1x USB 3.2 Type-C + 2 x USB4 Type-C

Gniazda USB na płycie główn...: 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, For Windows 10, please note that no driver is available, refer to the, Wi-Fi chipset vendor's website for details, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary, between countries, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications

Port PS...: Brak

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: Wi-Fi module with an antenna connector, 4-pin Chassis Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, CPU Over Voltage jumper, 10-1 pin System Panel header, Thermal Sensor connectors, BIOS FlashBack button , Clear CMOS button(s)

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Wyposażenie dodatko...: 1x DisplayPort cable, 4x SATA 6Gb/s cables, 1x Thermal pad for M.2 22110, 1x ASUS WiFi Q-Antenna, 1x Q-connector, 1x M.2 Q-Latch package, 1x M.2 Q-Latch Q-Slide package for M.2 backplate, 2x Rubber Packages for M.2, 1x ProArt ruler, 1x Quick start guide, 1x ACC Express Activation Key Card

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Operating System: Windows 11
