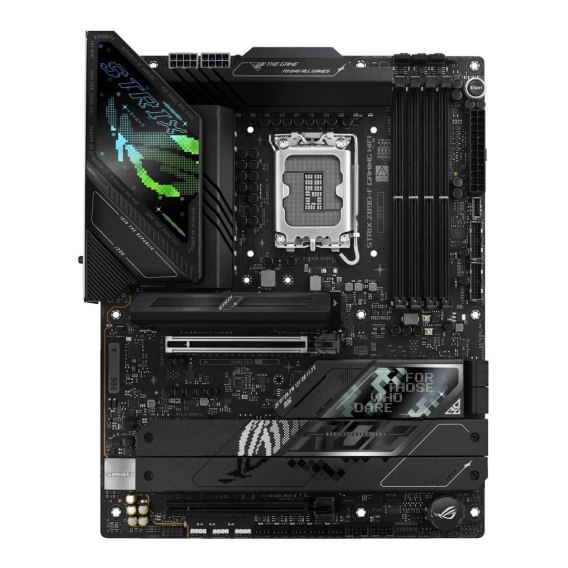

Płyta Asus ROG STRIX Z890-F GAMING WIFI /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/ATX Asus

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: ATX

BI...: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE

Chipset płyty główn...: Intel® Z890

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8600+ (OC)

Uwagi do pamięci R...: Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2

Uwagi do kontrolera SA...: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), - M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5,, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5

Gniazda karty graficzn...: HDMI, DisplayPort, 2x Thunderbolt™ 4 (USB Type-C®)

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4a, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total, bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please, check DisplayPort 2.1 specs, VGA resolution support depends on processors' or graphic cards' resolution

Zintegrowana karta dźwięko...: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękow...: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks, Premium audio capacitors, Audio cover, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output

Złącza PCI Express x...: 2

Uwagi do złącz P...: Intel Core Ultra Processors (series 2), - 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes), Intel® Z890 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), To ensure compatibility of the device installed, please refer to

Port L...: 1x 2,5 Gigabit LAN Intel®

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 15

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0 + 4x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunderbolt 4 (USB Type-C)

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, Chassis intrusion header, CPU Over Voltage jumper, 10-1 pin System Panel header, Thermal Sensor header, BIOS FlashBack button , Clear CMOS button(s), Wi-Fi module with an antenna connector

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 3 x M.2 rubber packages, 1 x Quick start guide

Informacje dodatko...: Operating System: Windows 11 (22H2 & later)
