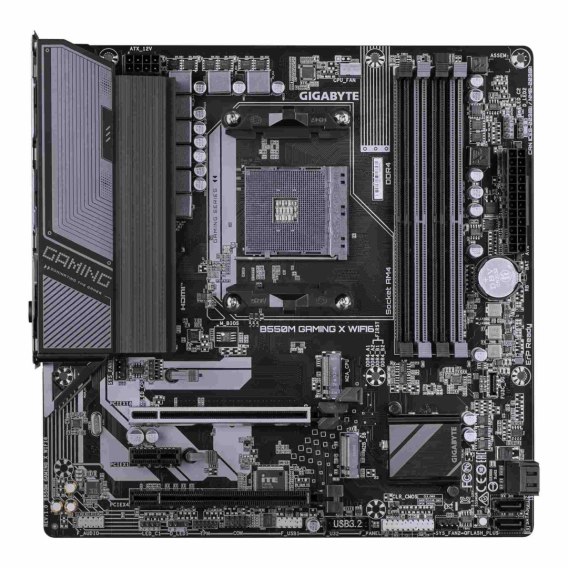

Płyta Gigabyte B550M GAMING X WIFI6 /AMD B550/DDR4/SATA3/M.2/USB3.0/PCIe4.0/WiFi/BT/AM4/mATX Gigabyte

Gniazdo proceso...: Socket AM4 (1331)

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series, Please refer "CPU Support List" for more information

Format pły...: Micro-ATX

BI...: 1 x 128 Mbit flash AMI UEFI BIOS

Chipset płyty główn...: AMD B550

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 128 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2933, DDR4-3200

Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, ECC Memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support Extreme Memory Profile (XMP)

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 2280 SSDs:, - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and, PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ Ryzen™ 5000 G, Ryzen™ 4000 G and Ryzen™ 3000 G Processors, support SATA and PCIe 3.0 x4/x2 SSDs, 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset:, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon R-Series/Vega (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., Maximum shared memory of 16 GB

Zintegrowana karta dźwięko...: Realtek® ALC 1220 7.1-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: 1x PCI Express x16 slot (PCIEX16), integrated in the CPU, - AMD Ryzen 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0, x16 mode, 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:, - Supporting PCIe 3.0 x4 mode, 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:, - Supporting PCIe 3.0 x1 mode

Port L...: 1x Gigabit LAN 100/1000 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 4

Maksymalna ilość portów USB 3...: 7

Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0

Gniazda USB na płycie główn...: 2x USB 2.0 + 2x USB 3.0 + 1x USB 3.0 Type-C

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Realtek® Wi-Fi 6 RTL8851BE, WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands, Support for 11ax 80MHz wireless standard

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, 2x system fan headers, 2x Addressable LED strip headers, 2x RGB LED strip headers, CPU cooler LED strip/RGB LED strip extension cable header, Trusted Platform Module header, Q-Flash Plus button, Clear CMOS jumper, 2x SMA antenna connectors (2T2R)

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 244 x 174

Opakowan...: BOX

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Support for Windows 11/10 64-bit, Norton® Internet Security (OEM version), LAN bandwidth management software
