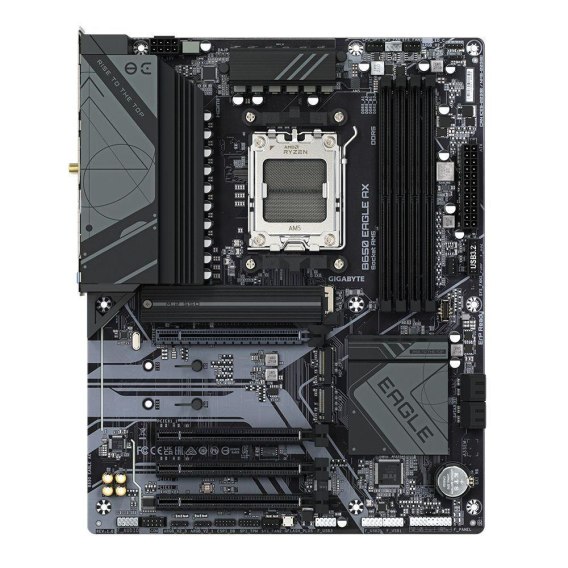

Płyta Gigabyte B650 EAGLE AX /AMD B650/DDR5/SATA3/M.2/WiFi/BT/PCIe4.0/AM5/ATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: Support for: AMD Ryzen™ 7000 Series Processors & 8000 Series Processors

Format pły...: ATX

BI...: 256 Mbit Flash AMI UEFI BIOS,PnP 1.0a,DMI 2.7,WfM 2.0,SM BIOS 2.7,ACPI 5.0

Chipset płyty główn...: AMD B650

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC)

Uwagi do pamięci R...: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules, Support up to 192 GB (48 GB single DIMM capacity)

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/2580 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, Chipset:, 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2C_SB), 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack

Uwagi do karty dźwiękow...: You can change the functionality of an audio jack using the audio software, To configure 7.1channel audio, access the audio software for audio settings

Złącza PCI Express x...: 4

Uwagi do złącz P...: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, slot, Chipset:, 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1, * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™, 8000 Series-Phoenix 2 processor is used.

Port L...: 1x 1 Gigabit LAN Realtek®

Uwagi do karty sieciow...: 1 Gbps/100 Mbps/10 Mbps

Maksymalna ilość portów USB 2...: 12

Maksymalna ilość portów USB 3...: 6

Porty USB na panelu tyln...: 6x USB 2.0 + 2x USB 3.1 + 1x USB 3.0 Type-C

Gniazda USB na płycie główn...: 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port Wi-...: IEEE 802.11ax

Port Bluetoo...: Bluetooth V5.0

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 2x system fan headers, System fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Gniazdo modułu TPM, Q-Flash Plus button, Clear CMOS jumper, 2x SMA antenna connectors (2T2R)

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 224

Opakowan...: BOX

Wyposażenie dodatko...: Norton® Internet Security (OEM version), LAN bandwidth management software

Informacje dodatko...: Windows® 11 64-bit, Windows® 10 64-bit, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/, GC-TPM2.0 SPI V2 module only)
