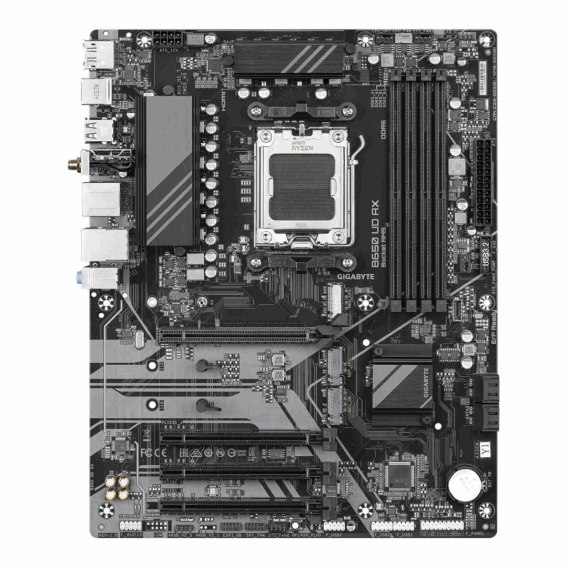

Płyta Gigabyte B650 UD AX (rev. 1.0) /AMD B650/DDR5/SATA3/M.2/USB3.0/PCIe5.0/WiFi/BT/AM5/ATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format pły...: ATX

BI...: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty główn...: AMD B650

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)

Uwagi do pamięci R...: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 4 x SATA 6Gb/s connectors

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: Integrated Graphics Processor:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - 1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports

Zintegrowana karta dźwięko...: Realtek® ALC 897 7.1-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting

Złącza PCI Express x...: 4

Uwagi do złącz P...: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in the, PCIEX16 slot, 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU,, supporting PCIe 3.0 and running at x1, 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting, PCIe 3.0 and running at x1

Port L...: 1x Gigabit LAN 100/1000 Mb/s (Realtek® 8111H)

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 11

Porty USB na panelu tyln...: 4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Realtek® RTL8851 WIFI 6 module, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - Support for 11ax wireless standard, Actual data rate may vary depending on environment and equipment.

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 2x system fan headers, System fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Trusted Platform Module header, Q-Flash Plus button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R)

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software, System operacyjny:, - Support for Windows 11 64-bit, - Support for Windows 10 64-bit
