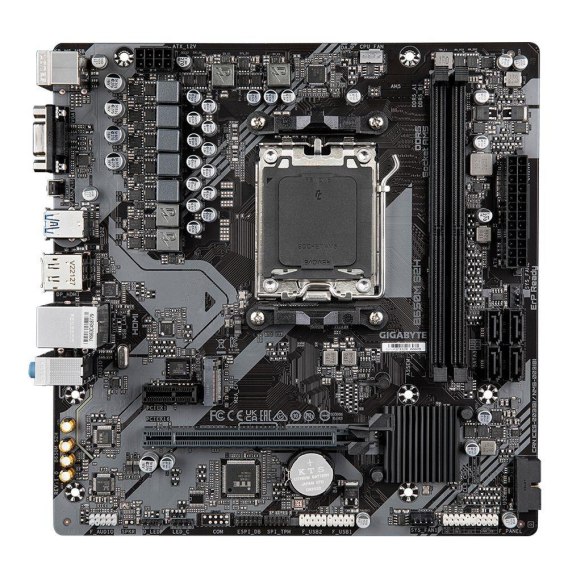

Płyta Gigabyte B650M S2H (rev. 1.0) /AMD B650/DDR5/SATA3/M.2/PCIe4.0/AM5/mATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: Support for: AMD Ryzen™ 7000 Series Processors & 8000 Series Processors

Format pły...: M-ATX

BI...: 256 Mbit Flash AMI UEFI BIOS,PnP 1.0a,DMI 2.7,WfM 2.0,SM BIOS 2.7,ACPI 5.0

Chipset płyty główn...: AMD B650

Ilość złącz pamięci DD...: 2

Maksymalna wielkość pamię...: 96 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC)

Uwagi do pamięci R...: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules, Support up to 96 GB (48 GB single DIMM capacity)

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 2580 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: D-Sub, HDMI, DisplayPort

Uwagi do karty graficzn...: 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, Support native HDMI 2.1 TMDS compatible ports, Graphics specifications may vary depending on CPU support, Support for up to 3 displays at the same time

Zintegrowana karta dźwięko...: Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack

Uwagi do karty dźwiękow...: You can change the functionality of an audio jack using the audio software, To configure 7.1channel audio, access the audio software for audio settings

Złącza PCI Express x...: 1

Złącza PCI Express ...: 1

Uwagi do złącz P...: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, slot, Chipset:, - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)

Port L...: 1x 1 Gigabit LAN Realtek®

Uwagi do karty sieciow...: 1 Gbps/100 Mbps/10 Mbps

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 4

Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty)

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, 2x system fan headers, Addressable LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Gniazdo modułu TPM, Q-Flash Plus button, Clear CMOS jumper

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 230 x 225

Opakowan...: BOX

Wyposażenie dodatko...: Norton® Internet Security (OEM version), LAN bandwidth management software

Informacje dodatko...: Windows® 11 64-bit, Windows® 10 64-bit, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/, GC-TPM2.0 SPI V2 module only)
