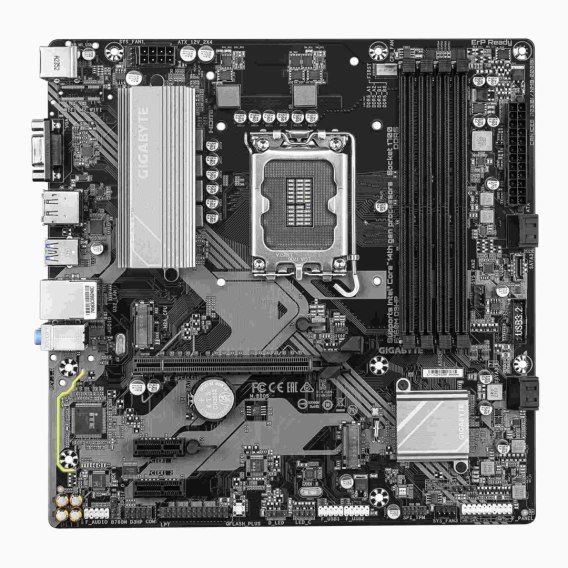

Płyta Gigabyte B760M D3HP /B760/DDR5/SATA3/M.2/USB3.0/PCIe4.0/s.1700/mATX Gigabyte

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)

Format pły...: Micro-ATX

BI...: 1 x 128 Mbit AMI UEFI BIOS PnP 1a, DMI 2.7, WfM 2, SM BIOS 2.7, ACPI 5

Chipset płyty główn...: Intel® B760

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4000, DDR5-4800, DDR5-5200, DDR5-5600

Uwagi do pamięci R...: 14th and 13th Generation Intel® Core™ i9/i7 Processors:, - Support for DDR5 5600/5200/4800/4400 MT/s memory modules, 13th Generation Intel Core i5/i3 and 12th Generation Intel Core,, Pentium Gold and Celeron Processors:, - Support for DDR5 4800/4400 MT/s memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SA...: Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), (M2A_CPU), Chipset:, - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), (M2P_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Intel® HD Graphics

Gniazda karty graficzn...: D-Sub, HDMI, DisplayPort

Uwagi do karty graficzn...: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports., - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3, - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack, Wewnętrzne gniazdo S/PDIF Out

Złącza PCI Express x...: 1

Złącza PCI Express ...: 2

Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, The PCIEX16 slot can only support a graphics card or an NVMe SSD., Chipset:, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Port L...: 1x 1 Gigabit LAN Realtek®

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 6

Porty USB na panelu tyln...: 2x USB 2.0 + 3x USB 3.0

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: 1x wewnętrzne gniazdo portu LPT

Inne porty i gniaz...: CPU fan header, 3x system fan headers, Addressable LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Trusted Platform Module header, Q-Flash Plus button, Reset jumper, Clear CMOS jumper

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 244 x 174

Opakowan...: BOX

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Bundled Software:, - Norton Internet Security (OEM version), - LAN bandwidth management software, Support for Windows 10/11 64-bit
