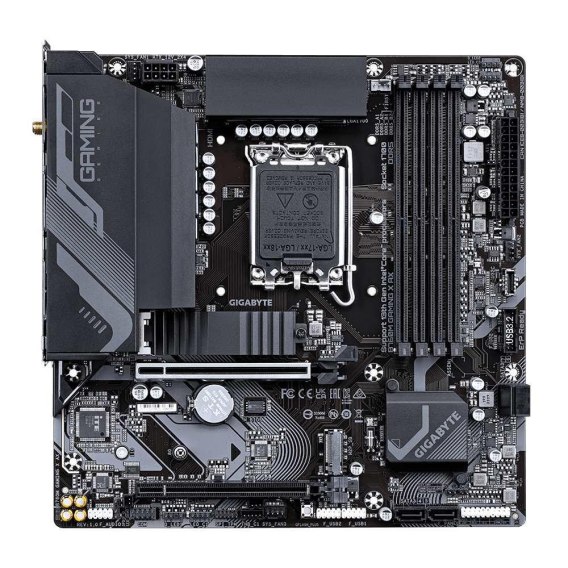

Płyta Gigabyte B760M GAMING X AX /B760/DDR5/SATA3/M.2/USB3.1/PCIe4.0/WiFi/BT/s.1700/mATX Gigabyte

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700)

Format pły...: M-ATX

BI...: 1 x 256 Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,ACPI 5.0

Chipset płyty główn...: Intel® B760

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4000, DDR5-4800, DDR5-5200 (OC), DDR5-5400 (OC), DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC)

Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in, non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Obsługa pamięci Extreme Memory Profile (XMP), The CPU and memory configuration may affect the supported memory types,, data rate (speed), and number of DRAM modules, please refer to "Memory, Support List" for more information.)

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2

Uwagi do kontrolera SA...: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2P_SB), RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out

Uwagi do karty dźwiękow...: Ilość kanałów audio 2/4/5.1/7.1, You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting

Złącza PCI Express x...: 2

Uwagi do złącz P...: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, (PCIEX16), The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in the, PCIEX16 slot, Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4, (PCIEX4)

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 9

Maksymalna ilość portów USB 3...: 6

Porty USB na panelu tyln...: 5x USB 2.0 + 3x USB 3.0

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: PCB rev. 1.0: Intel® Wi-Fi 6E AX210, PCB rev. 1.1: Intel® Wi-Fi 6E AX211, PCB rev. 1.2: Realtek® Wi-Fi 6E RTL8852CE, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Actual data rate may vary depending on environment and equipment

Port PS...: Brak

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, 3x system fan headers, 2x Addressable LED strip headers, 2x RGB LED Headers, Front panel header, Front Panel Audio header (AAFP), 2x Thunderbolt™ add-in card connectors, Trusted Platform Module header, Q-Flash Plus button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R)

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Opakowan...: BOX

Wyposażenie dodatko...: Norton® Internet Security (wersja OEM), LAN bandwidth management software

Informacje dodatko...: Support for Windows 10 64-bit, 11 64-bit, TPM header: For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
