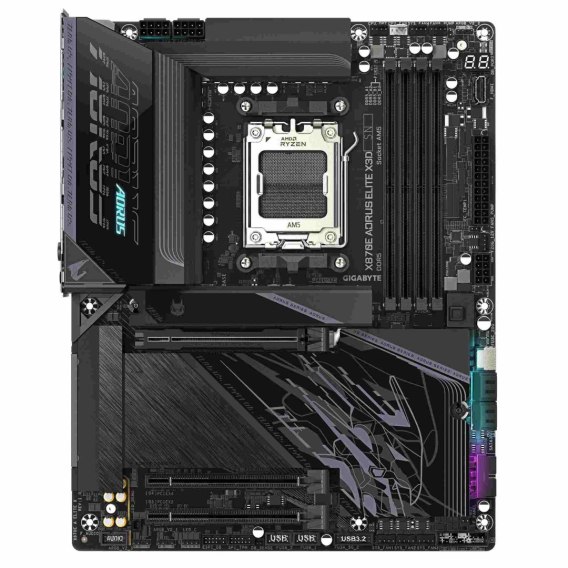

Płyta Gigabyte X870E A ELITE X /AMD X870E/DDR5/SATA3/M.2/USB4/PCIe5.0/WiFi/BT/AM5/ATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format pły...: ATX

BI...: 512 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty główn...: AMD X870E

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC), DDR5-8400 (OC), DDR5-8600 (OC), DDR5-8800 (OC), DDR5-9000+ (OC)

Uwagi do pamięci R...: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and, Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SA...: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 22110/2280 SSDs:, - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller, When a device is installed in theM2B_CPU connector, both the M2B_CPU, connector and the USB4 port supported by the ASMedia USB4® controller, operate at up to x2 bandwidth, When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the, USB4 port supported by the ASMedia USB4® controller operates at up to x2, bandwidth, and the M2B_CPU connector becomes unavailable, 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting, Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: 2x USB4 Type-C, 2x HDMI

Uwagi do karty graficzn...: Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia, USB4 Controller:, - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video, outputs and a maximum resolution of 3840x2160@240 Hz, Support for DisplayPort 1.4 version and HDR, Integrated Graphics Processor with AMD Radeon Graphics support:, - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Support native HDMI 2.1 TMDS compatible ports, - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 1.4, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting

Złącza PCI Express x...: 3

Uwagi do złącz P...: 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Port L...: 1x 5 Gigabit LAN Realtek®

Uwagi do karty sieciow...: 5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

Maksymalna ilość portów USB 2...: 4

Maksymalna ilość portów USB 3...: 14

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 3x USB 3.0 + 5x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: Qualcomm Wi-Fi 7 QCNCM865, - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency, - Support for 11be 320MHz wireless standard, Actual data rate may vary depending on environment and equipment, Wi-Fi 7 features require Windows 11 SV3 to function properly;no W10 support, Wi-Fi 7 channels on 6 GHz band availability depends on individual, country's regulations, Bluetooth version may change with updates

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 4x system fan headers, 2x system fan/water cooling pump headers, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Gniazdo modułu TPM, 2x temperature sensor headers, 2x SMA antenna connectors (2T2R), Power-on button(s), Reset button, Reset jumper, Clear CMOS jumper, Q-Flash Plus button

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Bundled Software, - Norton® Internet Security (OEM version), System operacyjny: Support for Windows 11 64-bit
