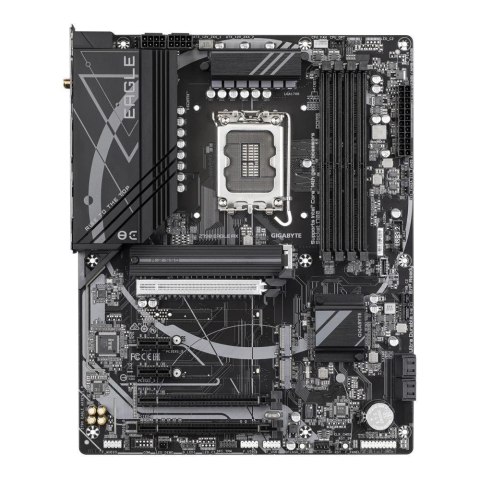

Płyta Gigabyte Z790 EAGLE AX /Z790/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/s.1700/ATX Gigabyte
Symbol:
Z790 EAGLE AX
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
| Zostaw telefon |
|
Gniazdo proceso...: Socket 1700
Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Uwagi do proceso...: Please refer to "CPU Support List" for more information
Format pły...: ATX
BI...: 1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5
Chipset płyty główn...: Intel® Z790
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC)
Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...: CPU:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2A_CPU), Chipset:, - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD, support) (M2P_SB), - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2, SSD support) (M2M_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wbudowana karta graficz...: Intel® HD Graphics
Gniazda karty graficzn...: HDMI, DisplayPort
Uwagi do karty graficzn...: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - Support for HDMI 2.1 version and HDCP 2.3, - Support for native HDMI 2.1 TMDS compatible ports, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, - Support for DisplayPort 1.2 version and HDCP 2.3, Graphics specifications may vary depending on CPU support
Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF, 3x Audio Jack
Złącza PCI Express x...: 3
Złącza PCI Express ...: 2
Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1, (PCIEX1_2, PCIEX1_3)
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2...: 6
Maksymalna ilość portów USB 3...: 9
Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax
Port Bluetoo...: Bluetooth V5.3
Uwagi do WiFi / ...: Support for 11ax 160MHz wireless standard, Actual data rate may vary depending on environment and equipment
Port PS...: Port combo klawiatury/myszy PS/2
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x Thunderbolt™ add-in card connectors, Front panel header, Gniazdo modułu TPM, Przycisk Reset, Q-Flash Plus button, Clear CMOS jumper
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 305 x 244
Opakowan...: BOX
Informacje dodatko...: Operating System: Support for Windows 10/11 64-bit, Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software
Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Uwagi do proceso...: Please refer to "CPU Support List" for more information
Format pły...: ATX
BI...: 1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5
Chipset płyty główn...: Intel® Z790
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC)
Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...: CPU:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2A_CPU), Chipset:, - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD, support) (M2P_SB), - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2, SSD support) (M2M_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wbudowana karta graficz...: Intel® HD Graphics
Gniazda karty graficzn...: HDMI, DisplayPort
Uwagi do karty graficzn...: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - Support for HDMI 2.1 version and HDCP 2.3, - Support for native HDMI 2.1 TMDS compatible ports, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, - Support for DisplayPort 1.2 version and HDCP 2.3, Graphics specifications may vary depending on CPU support
Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF, 3x Audio Jack
Złącza PCI Express x...: 3
Złącza PCI Express ...: 2
Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1, (PCIEX1_2, PCIEX1_3)
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2...: 6
Maksymalna ilość portów USB 3...: 9
Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax
Port Bluetoo...: Bluetooth V5.3
Uwagi do WiFi / ...: Support for 11ax 160MHz wireless standard, Actual data rate may vary depending on environment and equipment
Port PS...: Port combo klawiatury/myszy PS/2
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x Thunderbolt™ add-in card connectors, Front panel header, Gniazdo modułu TPM, Przycisk Reset, Q-Flash Plus button, Clear CMOS jumper
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 305 x 244
Opakowan...: BOX
Informacje dodatko...: Operating System: Support for Windows 10/11 64-bit, Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software
Informacje dodatko...:
- LAN bandwidth management software, - Norton® Internet Security (OEM version), Bundled Software, Operating System: Support for Windows 10/11 64-bit
Wymiary [S x W] (m...:
305 x 244
Opakowan...:
BOX
Port Bluetoo...:
Bluetooth V5.3
Format pły...:
ATX
Port L...:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-...:
IEEE 802.11a/b/g/n/ac/ax
Maksymalna wielkość pamię...:
192 GB
Chipset płyty główn...:
Intel® Z790
Wbudowana karta graficz...:
Intel® HD Graphics
Standard pamię...:
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC)
Gniazdo proceso...:
Socket 1700
Obsługiwane typy procesor...:
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i3 14th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i5 14th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i7 14th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Core i9 14th Generation, Intel Pentium™ (Socket 1700)
Uwagi do proceso...:
Please refer to "CPU Support List" for more information
BI...:
1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5
Ilość złącz pamięci DD...:
4
Tryb pracy pamięci R...:
Dual Channel
Uwagi do pamięci R...:
(operate in non-ECC mode), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SA...:
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...:
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD, - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2, - 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, - 4x SATA 6Gb/s connectors, Chipset:, CPU:, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices, SSD support) (M2M_SB), support) (M2A_CPU), support) (M2P_SB)
Gniazda karty graficzn...:
DisplayPort, HDMI
Uwagi do karty graficzn...:
- Support for DisplayPort 1.2 version and HDCP 2.3, - Support for HDMI 2.1 version and HDCP 2.3, - Support for native HDMI 2.1 TMDS compatible ports, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Graphics specifications may vary depending on CPU support
Zintegrowana karta dźwięko...:
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x...:
3
Złącza PCI Express ...:
2
Uwagi do złącz P...:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4, - 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 PCIEX4, - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX16, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1, (PCIEX1_2, PCIEX1_3), Chipset:, CPU:
Maksymalna ilość portów USB 2...:
6
Maksymalna ilość portów USB 3...:
9
Porty USB na panelu tyln...:
2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS...:
Port combo klawiatury/myszy PS/2
Port szeregowy (CO...:
Brak
Inne porty i gniaz...:
2x Addressable LED strip headers, 2x Thunderbolt™ add-in card connectors, 3x system fan headers, Clear CMOS jumper, CPU fan header, CPU fan/water cooling pump header, Front panel header, Gniazdo modułu TPM, Przycisk Reset, Q-Flash Plus button, System fan/water cooling pump header
Gniazdo zasilan...:
ATX (24-pin) + 2x ATX12V (8-pin)
Port równoległy (LP...:
Brak
Uwagi do WiFi / ...:
Actual data rate may vary depending on environment and equipment, Support for 11ax 160MHz wireless standard
Zawiera baterię / akumulat...:
Tak
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
