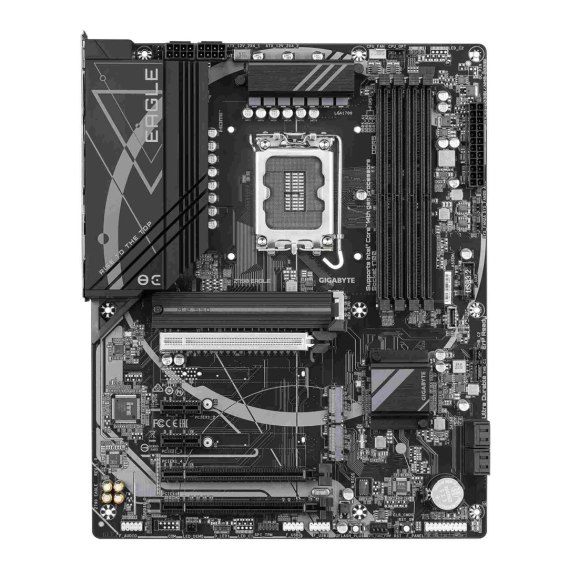

Płyta Gigabyte Z790 EAGLE /Z790/DDR5/SATA3/M.2/USB3.2/PCIe5.0/s.1700/ATX Gigabyte

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)

Uwagi do proceso...: Please refer to "CPU Support List" for more information

Format pły...: ATX

BI...: 1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5

Chipset płyty główn...: Intel® Z790

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC)

Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2A_CPU), Chipset:, - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD, support) (M2P_SB), - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2, SSD support) (M2M_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Intel® HD Graphics

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - Support for HDMI 2.1 version and HDCP 2.3, - Support for native HDMI 2.1 TMDS compatible ports, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, - Support for DisplayPort 1.2 version and HDCP 2.3, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF, 3x Audio Jack

Złącza PCI Express x...: 3

Złącza PCI Express ...: 2

Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1, (PCIEX1_2, PCIEX1_3)

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 9

Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x Thunderbolt™ add-in card connectors, Front panel header, Gniazdo modułu TPM, Przycisk Reset, Q-Flash Plus button, Clear CMOS jumper, Reset jumper

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Informacje dodatko...: Operating System: Support for Windows 10/11 64-bit, Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software
