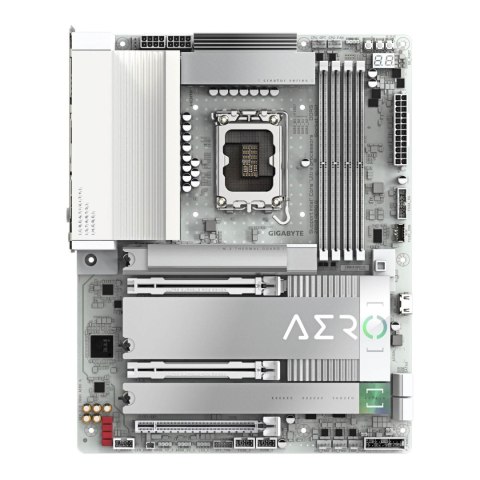

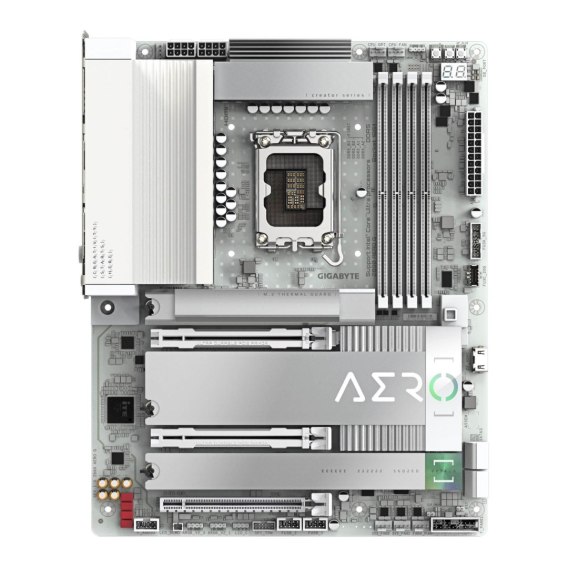

Płyta Gigabyte Z890 AERO G /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX Gigabyte

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Format pły...: ATX

BI...: 256 Mbit flash

Chipset płyty główn...: Intel® Z890

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8800 (OC), DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8266 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400, DDR5-6200, DDR5-6000, DDR5-5800, DDR5-5600

Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support CUDIMM memory module

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0, 1, 5, 10

Uwagi do kontrolera SA...: CPU:, - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 SSD support) (M2A_CPU), - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, PCIe 4.0 x4/x2 SSD support) (M2B_CPU), Chipset:, - 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD, support) (M2Q_SB), - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), (M2P_SB), - 1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD, support) (M2M_SB), - 4x SATA 6Gb/s connectors

Gniazda karty graficzn...: HDMI, Thunderbolt™ 4

Uwagi do karty graficzn...: - When a Thunderbolt monitor is installed, the maximum resolution, supported is 5120x2880@60 Hz with 24 bpp (single display output), - When a USB4 USB Type-C monitor is installed, the maximum resolution, supported is 3840x2160@240 Hz (single display output), - Support for HDMI 2.1 version and HDCP 2.3, - Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: Wyjście optyczne S/PDIF, 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x...: 3

Uwagi do złącz P...: CPU:, - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX16, - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 PCIEX8, Chipset:, - 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 PCIEX4

Port L...: 2x 2,5 Gigabit LAN Intel®

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 9

Maksymalna ilość portów USB 4...: 1

Porty USB na panelu tyln...: 2x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x Thunderbolt 4 (USB Type-C)

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: Intel Wi-Fi 7 BE202 (BE200NGW M), - Support for 11be 160MHz wireless standard, - Wi-Fi 7 features require Windows 11 SV3 to function properly, - Wi-Fi 7 channels on 6 GHz band availability depends on individual country

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED connector, Front panel header, Gniazdo modułu TPM, Reset button, Q-Flash Plus button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R)

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Informacje dodatko...: Support for Windows 11 64-bit, BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Bundled Software:, - Norton Internet Security (OEM version), - LAN bandwidth management software
