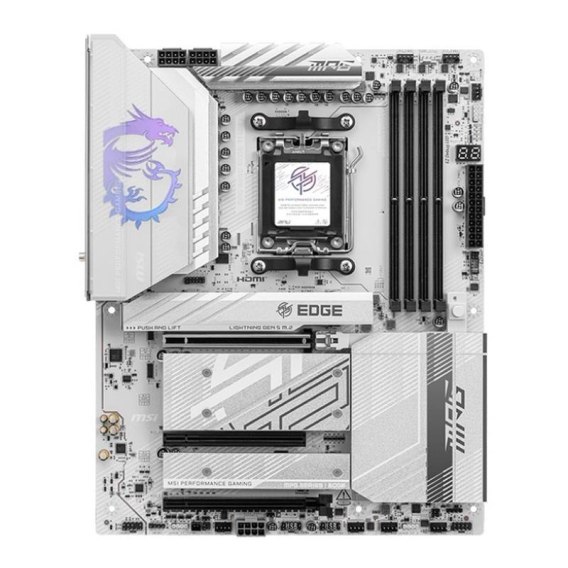

Płyta MSI MPG B850 EDGE TI WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/AM5/ATX MSI

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Format pły...: ATX

Chipset płyty główn...: AMD B850

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8400 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6000 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5600, DDR5-5400, DDR5-5200, DDR5-5000, DDR5-4800

Uwagi do pamięci R...: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8400+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 22110/2280 devices, - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, M.2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), M.2_2 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processor, - Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors), Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices, RAID 10 for M.2 NVMe storage devices is only supp. by AMD Ryzen 9000/7000

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI

Uwagi do karty graficzn...: Support HDMITM 2.1 with FRL port, supporting a max. resolution of 8K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed

Zintegrowana karta dźwięko...: Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC

Gniazda karty dźwiękow...: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x...: 3

Uwagi do złącz P...: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot

Port L...: 1x 5 Gigabit LAN Realtek® 8126

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 11

Porty USB na panelu tyln...: 4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 3x USB 3.1 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), Złącze czujnika otwarcia obudowy, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (m...: 304,8 x 243,8

Opakowan...: BOX

Wyposażenie dodatko...: SATA Cable, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, 3x EZ M.2 Clip II, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1)

Informacje dodatko...: Support for Windows 11 64-bit
