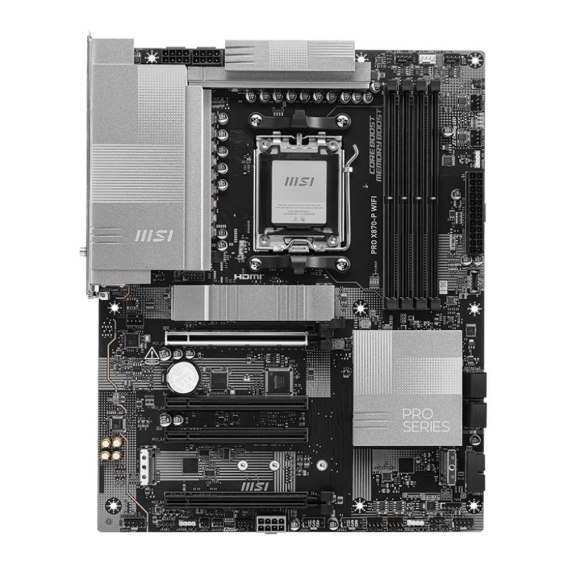

Płyta MSI PRO X870-P WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX MSI
Symbol:
PRO X870-P WIFI
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
| Zostaw telefon |
|
Gniazdo proceso...: Socket AM5
Obsługiwane typy procesor...: AMD Ryzen™ (AM5)
Uwagi do proceso...: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format pły...: ATX
Chipset płyty główn...: AMD X870
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 256 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci R...: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficzn...: HDMI, USB Type-C
Uwagi do karty graficzn...: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwięko...: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękow...: 3x Audio Jack
Złącza PCI Express x...: 4
Uwagi do złącz P...: 4x PCI-E x16 slot (Qty):, - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Maksymalna ilość portów USB 2...: 8
Maksymalna ilość portów USB 3...: 8
Maksymalna ilość portów USB 4...: 1
Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 2x Antenna Ports, Flash BIOS Button, Clear CMOS button(s)
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 243,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: 2x SATA Cables, EZ Wi-Fi antenna, EZ M.2 Clip II Removal, 3x EZ M.2 Clip II, 1x to 2 EZ Conn-Cable (V1)
Informacje dodatko...: Support for Windows 11 64-bit
Obsługiwane typy procesor...: AMD Ryzen™ (AM5)
Uwagi do proceso...: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format pły...: ATX
Chipset płyty główn...: AMD X870
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 256 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci R...: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficzn...: HDMI, USB Type-C
Uwagi do karty graficzn...: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwięko...: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękow...: 3x Audio Jack
Złącza PCI Express x...: 4
Uwagi do złącz P...: 4x PCI-E x16 slot (Qty):, - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Maksymalna ilość portów USB 2...: 8
Maksymalna ilość portów USB 3...: 8
Maksymalna ilość portów USB 4...: 1
Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 2x Antenna Ports, Flash BIOS Button, Clear CMOS button(s)
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 243,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: 2x SATA Cables, EZ Wi-Fi antenna, EZ M.2 Clip II Removal, 3x EZ M.2 Clip II, 1x to 2 EZ Conn-Cable (V1)
Informacje dodatko...: Support for Windows 11 64-bit
Informacje dodatko...:
Support for Windows 11 64-bit
Wyposażenie dodatko...:
1x to 2 EZ Conn-Cable (V1), 2x SATA Cables, 3x EZ M.2 Clip II, EZ M.2 Clip II Removal, EZ Wi-Fi antenna
Wymiary [S x W] (m...:
243,84 x 304,8
Opakowan...:
BOX
Port Bluetoo...:
Bluetooth V5.4
Format pły...:
ATX
Port L...:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Port Wi-...:
IEEE 802.11a/b/g/n/ac/ax/be
Maksymalna wielkość pamię...:
256 GB
Chipset płyty główn...:
AMD X870
Wbudowana karta graficz...:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Standard pamię...:
DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Gniazdo proceso...:
Socket AM5
Obsługiwane typy procesor...:
AMD Ryzen™ (AM5)
Uwagi do proceso...:
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Ilość złącz pamięci DD...:
4
Tryb pracy pamięci R...:
Dual Channel
Uwagi do pamięci R...:
- 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 4800+ MT/s, Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen 9000 Series Processors max. overclocking frequency:, Supports AMD POR Speed and JEDEC Speed, Supports CUDIMM, Clock Driver bypass mode only, Supports Dual-Channel mode, Supports Memory Overclocking and AMD EXPO, Supports Non-ECC, Un-buffered memory
Zintegrowany kontroler SA...:
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SA...:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 22110/2280 devices, supports 2280/2260 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Gniazda karty graficzn...:
HDMI, USB Type-C
Uwagi do karty graficzn...:
Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed., Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C
Zintegrowana karta dźwięko...:
Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękow...:
3x Audio Jack
Złącza PCI Express x...:
4
Uwagi do złącz P...:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), 4x PCI-E x16 slot (Qty):, PCI_E1 slot:
Maksymalna ilość portów USB 2...:
8
Maksymalna ilość portów USB 3...:
8
Porty USB na panelu tyln...:
4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie główn...:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS...:
Brak
Port szeregowy (CO...:
Brak
Inne porty i gniaz...:
2x Antenna Ports, 2x Front Panel, 3x Addressable V2 RGB LED connector, 6x System Fan, Clear CMOS button(s), CPU Fan, Flash BIOS Button, Gniazdo modułu TPM, Pump Fan, RGB LED connector, Tuning Controller Connector, Złącze czujnika otwarcia obudowy
Gniazdo zasilan...:
ATX (24-pin) + 2x ATX12V (8-pin)
Port równoległy (LP...:
Brak
Uwagi do WiFi / ...:
6GHz band support may depend on every country's regulations and Wi-Fi 7 (31784), Bluetooth 5.4 will be ready in Windows 11 version 24H2, Supports Bluetooth 5.4, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details (12048), Wi-Fi 7, will be ready in Windows 11 version 24H2
Maksymalna ilość portów USB 4...:
1
Zawiera baterię / akumulat...:
Tak
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
