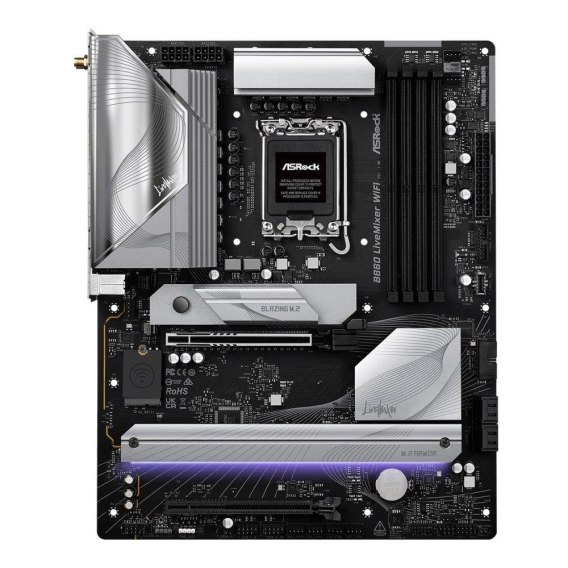

Płyta ASRock B860 LiveMixer WiFi /B860/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe/5.0/s.1851/ATX ASRock

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: - Supports Intel® Hybrid Technology, - Supports Intel® Turbo Boost Max 3.0 Technology, - Supports Intel® Thermal Velocity Boost (TVB), - Supports Intel® Adaptive Boost Technology (ABT), - Integrated NPU for dedicated AI acceleration

Format pły...: ATX

BI...: 256Mb AMI UEFI Legal BIOS with GUI support

Chipset płyty główn...: Intel® B860

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8666+ (OC)

Uwagi do pamięci R...: - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC), - 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively, - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively, - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively, - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Nativel, - Supports Clocked Unbuffered DIMM (CUDIMM), - Supports Intel® Extreme Memory Profile (XMP) 3.0x

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 3x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports Intel® Volume Management Device (VMD), Supports NVMe SSD as boot disks

Wbudowana karta graficz...: Intel® Xe LPG Graphics Architecture

Gniazda karty graficzn...: HDMI, Thunderbolt™ 4

Uwagi do karty graficzn...: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to, 8K 60Hz / 5K 120Hz, Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported, only with processors which are GPU integrated, Supports two 4K displays or one 8K display, Only the CPU's embedded graphics can be displayed through Thunderbolt™ port

Zintegrowana karta dźwięko...: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękow...: - Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio

Złącza PCI Express x...: 2

Uwagi do złącz P...: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, - 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and, Intel® CNVio/CNVio2 (Integrated WiFi/BT), Supports NVMe SSD as boot disks

Port L...: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Uwagi do karty sieciow...: - Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control

Maksymalna ilość portów USB 2...: 10

Maksymalna ilość portów USB 3...: 11

Maksymalna ilość portów USB 4...: 1

Porty USB na panelu tyln...: 6x USB 2.0 + 6x USB 3.0 + 1x Thunderbolt 4

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.0 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/axe

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: - 802.11axe Wi-Fi 6E Module, - Supports Dual-Band 2x2 with extended 6GHz band support, - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: Thermal Sensor connectors, SPI TPM header (14-1pin), Power LED and Speaker Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 5x 4-pin Chassis Fan connectors, AIO Pump Fan Connector, 2x Antenna Ports, BIOS FlashBack button

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Wyposażenie dodatko...: 1x User Manual, 2x SATA Data Cables, 4x Screws for M.2 Sockets, 1x Standoff for M.2 Socket

Informacje dodatko...: Operating System: Microsoft Windows® 11 64-bit
