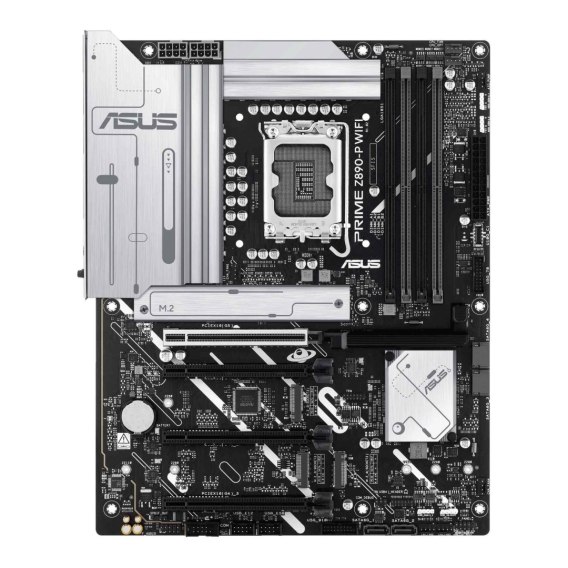

Płyta Asus PRIME Z890-P WIFI /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/ATX Asus
Symbol:
PRIME Z890-P WIFI
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Mało
|
Zamówienie telefoniczne: 793361000
| Zostaw telefon |
|
Gniazdo proceso...: Socket 1851
Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)
Uwagi do proceso...: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format pły...: ATX
BI...: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty główn...: Intel® Z890
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-7600+ (OC)
Uwagi do pamięci R...: Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Fit
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SA...: Intel Core Ultra Processors (series 2):, - M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset:, - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10,, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Gniazda karty graficzn...: HDMI, DisplayPort, Thunderbolt™ 4
Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC, maximum, total bandwidth up to 23.8Gbps, for resolution support please check, DisplayPort 2.1 specs, In DP alt mode, supports up to UHBR20, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack, Wewnętrzne gniazdo S/PDIF Out
Uwagi do karty dźwiękow...: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output
Złącza PCI Express x...: 4
Uwagi do złącz P...: Intel Core Ultra Processors (series 2):, - 1 x PCIe 5.0 x16 slot, Intel® Z890 Chipset:, - 2 x PCIe 4.0 x16 slots (support x4 mode), - 1 x PCIe 4.0 x16 slot (supports x1 mode), Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Port L...: 1x 2,5 Gigabit LAN Realtek®
Uwagi do karty sieciow...: ASUS LANGuard
Maksymalna ilość portów USB 2...: 8
Maksymalna ilość portów USB 3...: 8
Maksymalna ilość portów USB 4...: 1
Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x Thunderbolt 4 (USB Type-C)
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported
Port PS...: Brak
Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM
Port równoległy (LP...: Brak
Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, AURA RGB header, SPI TPM header (14-1pin), 10-1 pin System Panel header, BIOS FlashBack button , Clear CMOS button(s), Wi-Fi module with an antenna connector
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 305 x 244
Opakowan...: BOX
Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide
Informacje dodatko...: Operating System: Windows 11 (22H2 & later)
Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)
Uwagi do proceso...: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format pły...: ATX
BI...: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty główn...: Intel® Z890
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-7600+ (OC)
Uwagi do pamięci R...: Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Fit
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SA...: Intel Core Ultra Processors (series 2):, - M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset:, - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10,, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Gniazda karty graficzn...: HDMI, DisplayPort, Thunderbolt™ 4
Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC, maximum, total bandwidth up to 23.8Gbps, for resolution support please check, DisplayPort 2.1 specs, In DP alt mode, supports up to UHBR20, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack, Wewnętrzne gniazdo S/PDIF Out
Uwagi do karty dźwiękow...: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output
Złącza PCI Express x...: 4
Uwagi do złącz P...: Intel Core Ultra Processors (series 2):, - 1 x PCIe 5.0 x16 slot, Intel® Z890 Chipset:, - 2 x PCIe 4.0 x16 slots (support x4 mode), - 1 x PCIe 4.0 x16 slot (supports x1 mode), Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Port L...: 1x 2,5 Gigabit LAN Realtek®
Uwagi do karty sieciow...: ASUS LANGuard
Maksymalna ilość portów USB 2...: 8
Maksymalna ilość portów USB 3...: 8
Maksymalna ilość portów USB 4...: 1
Porty USB na panelu tyln...: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x Thunderbolt 4 (USB Type-C)
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported
Port PS...: Brak
Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM
Port równoległy (LP...: Brak
Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, AURA RGB header, SPI TPM header (14-1pin), 10-1 pin System Panel header, BIOS FlashBack button , Clear CMOS button(s), Wi-Fi module with an antenna connector
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 305 x 244
Opakowan...: BOX
Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide
Informacje dodatko...: Operating System: Windows 11 (22H2 & later)
Informacje dodatko...:
Operating System: Windows 11 (22H2 & later)
Wyposażenie dodatko...:
1 x M.2 rubber package, 1x ASUS WiFi Q-Antenna, 1x Quick start guide, 2 x Screw packages for M.2 SSD, 2x SATA 6Gb/s cables
Wymiary [S x W] (m...:
305 x 244
Opakowan...:
BOX
Port Bluetoo...:
Bluetooth V5.4
Format pły...:
ATX
Port L...:
1x 2,5 Gigabit LAN Realtek®
Port Wi-...:
IEEE 802.11a/b/g/n/ac/ax/be
Maksymalna wielkość pamię...:
192 GB
Chipset płyty główn...:
Intel® Z890
Standard pamię...:
DDR5-7600+ (OC)
Gniazdo proceso...:
Socket 1851
Obsługiwane typy procesor...:
Intel Core Ultra Processors (series 2)
Uwagi do proceso...:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
BI...:
256 (128+128) Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Ilość złącz pamięci DD...:
4
Tryb pracy pamięci R...:
Dual Channel
Uwagi do pamięci R...:
ASUS Enhanced Memory Profile III (AEMP III), Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module
Zintegrowany kontroler SA...:
Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SA...:
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, Intel® Core™ Ultra Processors(series 2):, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10,, Intel® Z890 Chipset:, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Gniazda karty graficzn...:
DisplayPort, HDMI, Thunderbolt™ 4
Uwagi do karty graficzn...:
DisplayPort 2.1 specs, Graphics specifications may vary between CPU types. Please refer to, In DP alt mode, supports up to UHBR20, In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC, maximum, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4, total bandwidth up to 23.8Gbps, for resolution support please check, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwięko...:
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękow...:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out
Uwagi do karty dźwiękow...:
A chassis with an HD audio module in the front panel is required to, Audio Shielding, Dedicated audio PCB layers, Premium audio capacitors, support 7.1 Surround Sound audio output, Supports up to 24-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Złącza PCI Express x...:
4
Uwagi do złącz P...:
- 1 x PCIe 4.0 x16 slot (supports x1 mode), - 1 x PCIe 5.0 x16 slot, - 2 x PCIe 4.0 x16 slots (support x4 mode), Intel Core Ultra Processors (series 2):, Intel® Z890 Chipset:, Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Uwagi do karty sieciow...:
ASUS LANGuard
Maksymalna ilość portów USB 2...:
8
Maksymalna ilość portów USB 3...:
8
Porty USB na panelu tyln...:
4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x Thunderbolt 4 (USB Type-C)
Gniazda USB na płycie główn...:
2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)
Port PS...:
Brak
Port szeregowy (CO...:
1x wewnętrzne gniazdo portu COM
Inne porty i gniaz...:
10-1 pin System Panel header, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4x 4-pin Chassis Fan headers, AURA RGB header, BIOS FlashBack button , Clear CMOS button(s), SPI TPM header (14-1pin), Wi-Fi module with an antenna connector
Gniazdo zasilan...:
ATX (24-pin) + 2x ATX12V (8-pin)
Port równoległy (LP...:
Brak
Uwagi do WiFi / ...:
2x2 Wi-Fi 7 (802.11be), For Windows 10, only Wi-Fi 6 is supported, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Supports 2.4/5/6GHz frequency band, Wi-Fi features may vary depending on the operating system
Maksymalna ilość portów USB 4...:
1
Zawiera baterię / akumulat...:
Tak
