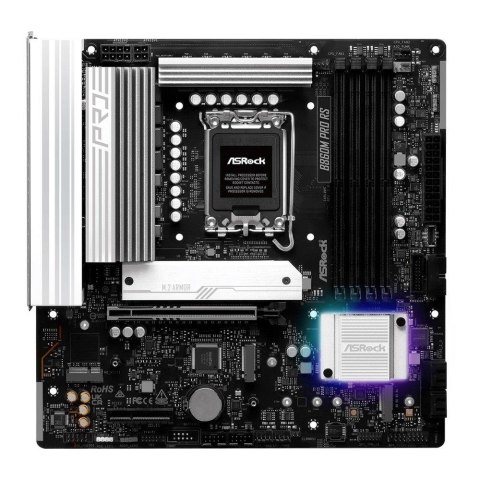

Płyta ASRock B860M Pro RS /B860/DDR5/SATA3/M.2/USB3.2/PCIe5.0/s.1851/M-ATX ASRock

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: - Supports Intel® Hybrid Technology, - Supports Intel® Turbo Boost Max 3.0 Technology, - Supports Intel® Thermal Velocity Boost (TVB), - Supports Intel® Adaptive Boost Technology (ABT), - Integrated NPU for dedicated AI acceleration

Format pły...: Micro-ATX

BI...: 256Mb AMI UEFI Legal BIOS with GUI support

Chipset płyty główn...: Intel® B860

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8666+ (OC)

Uwagi do pamięci R...: - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC), - 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively, - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively, - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively, - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively, - Supports Clocked Unbuffered DIMM (CUDIMM), - Supports Intel® Extreme Memory Profile (XMP) 3.0x

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 3x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports Intel® Volume Management Device (VMD), Supports NVMe SSD as boot disks

Wbudowana karta graficz...: Intel® Xe LPG Graphics Architecture

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max., resolution up to 8K 60Hz / 5K 120Hz, Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported, only with processors which are GPU integrated

Zintegrowana karta dźwięko...: Realtek® ALC 897 7.1-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: Nahimic Audio

Złącza PCI Express x...: 1

Złącza PCI Express ...: 1

Uwagi do złącz P...: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and, Intel® CNVio/CNVio2 (Integrated WiFi/BT), Supports NVMe SSD as boot disks

Port L...: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Uwagi do karty sieciow...: - Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control

Maksymalna ilość portów USB 2...: 6

Maksymalna ilość portów USB 3...: 9

Porty USB na panelu tyln...: 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.2 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.0 Type-C (1 port)

Port Wi-...: Nie

Port Bluetoo...: Nie

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: SPI TPM header (14-1pin), Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Mounting Points

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 244 x 244

Opakowan...: BOX

Wyposażenie dodatko...: - 2 x SATA Data Cables, - 1 x Screw for M.2 Socket

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Operating System: Microsoft Windows® 11 64-bit
