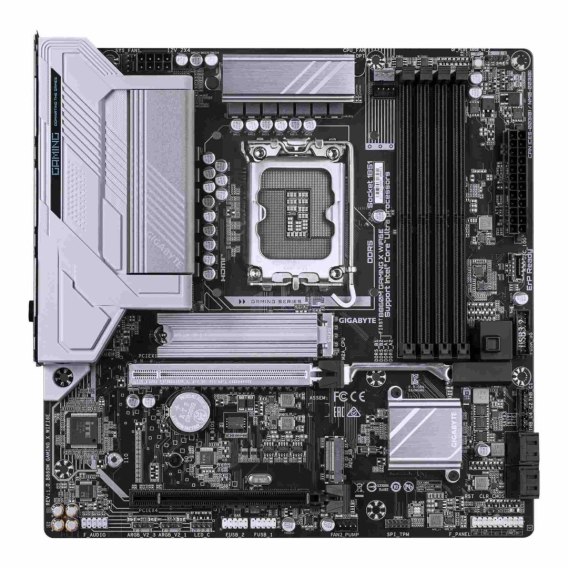

Płyta Gigabyte B860M GAMING X WIFI6E /B860/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/M-ATX Gigabyte

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: L3 cache varies with CPU

Format pły...: M-ATX

BI...: 256 Mbit flash

Chipset płyty główn...: Intel® B860

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-9200 (OC), DDR5-8800 (OC), DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8266 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400, DDR5-5600

Uwagi do pamięci R...: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2

Uwagi do kontrolera SA...: CPU:, - 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 5.0 x4/x2 SSD support)M2A_CPU), Chipset:, - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, PCIe 4.0x4/x2 SSD support) (M2Q_SB), - 4 x SATA 6Gb/s connectors

Gniazda karty graficzn...: HDMI, USB4 Type-C, DisplayPort

Uwagi do karty graficzn...: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video, outputs and a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 2.1 version., - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 2.1 version., - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3.

Zintegrowana karta dźwięko...: Realtek® HD Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: High Definition Audio, 2/4/5.1/7.1-channel

Złącza PCI Express x...: 2

Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, (PCIEX16), - The PCIEX16 slot can only support a graphics card or an NVMe SSD., If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 9

Maksymalna ilość portów USB 3...: 6

Maksymalna ilość portów USB 4...: 1

Porty USB na panelu tyln...: 5x USB 2.0 + 3x USB 3.0 + 1x USB 4

Gniazda USB na płycie główn...: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Intel Wi-Fi 6E AX211 (PCB rev. 1.0/2.0), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard, Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, System fan header, System fan/water cooling pump extension cable header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Trusted Platform Module header, Q-Flash Plus button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R), 2x Thunderbolt™ add-in card connectors

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 244 x 244

Opakowan...: BOX

Informacje dodatko...: Norton® Internet Security (OEM version), LAN bandwidth management software, BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
