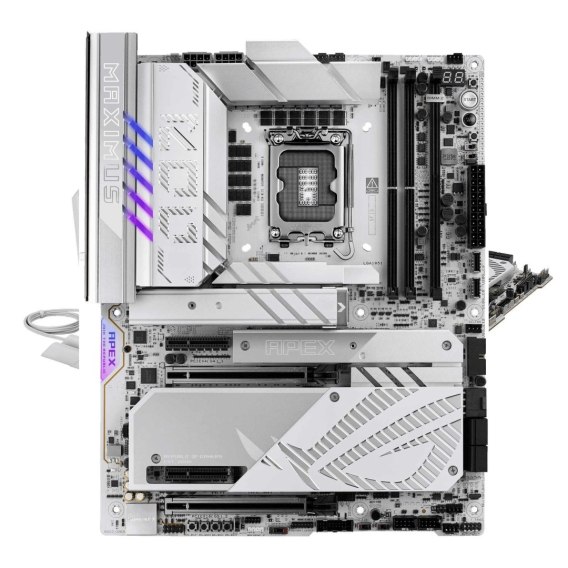

Płyta Asus ROG MAXIMUS Z890 APEX /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/ATX Asus

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: ATX

BI...: 2x 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME

Chipset płyty główn...: Intel® Z890

Ilość złącz pamięci DD...: 2

Maksymalna wielkość pamię...: 96 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8800+ (OC)

Uwagi do pamięci R...: Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Flex, Supports DIMM Fit, ASUS Enhanced Memory Profile III (AEMP III)

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 6x M.2

Uwagi do kontrolera SA...: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes), Intel® Z890 Chipset:, - DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), - DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5, M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2, When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2, will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 &, PCIEX16(G5)_2 will disabled

Gniazda karty graficzn...: 2x Thunderbolt™ 4 (USB Type-C®)

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth, up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check, DisplayPort 2.1 specs, VGA resolution support depends on processors' or graphic cards' resolution

Zintegrowana karta dźwięko...: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękow...: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękow...: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Gold-plated audio jacks, Premium audio capacitors, Audio cover

Złącza PCI Express x...: 2

Złącza PCI Express ...: 2

Uwagi do złącz P...: Intel Core Ultra Processors (series 2):, - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes), Intel® Z890 Chipset:, - 2 x PCIe 4.0 x4 slots, Please check the PCIe bifurcation table on the support site, M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled,, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4, are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled

Port L...: 1x 5 Gigabit LAN Realtek®

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 4

Maksymalna ilość portów USB 3...: 14

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 4x USB 3.0 + 4x USB 3.1 + 1x USB 3.2 Type-C + 2x Thunderbolt 4 (USB Type-C)

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 2x 4-pin Chassis Fan headers, 2x 4-pin Full Speed Fan headers, W_PUMP+ header, Extra Flow Fan header, 3x Addressable Gen 2 header, Alteration PCIe mode switch, 10-1 pin System Panel header, Thermal Sensor header, BIOS Switch button, BIOS FlashBack button , Clear CMOS button(s), FlexKey button

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Wyposażenie dodatko...: 1x ROG DIMM.2 with heatsink, 1x M.2 pad for ROG DIMM.2, 2x M.2 screw package for ROG DIMM.2, 1x ROG Memory Fan Kit, 1x Thermal pad for M.2 22110, 1x ASUS WiFi Q-Antenna

Informacje dodatko...: Operating System:, - Windows 11 (22H2 & later), - Windows 10 64-bit (21H2 & later)
