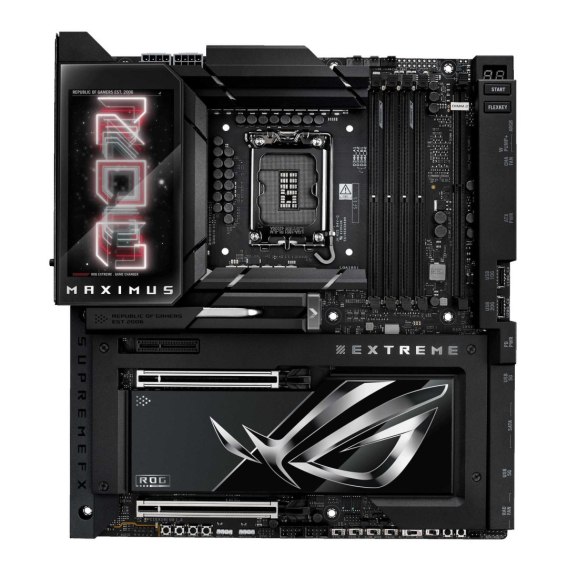

Płyta Asus ROG MAXIMUS Z890 EXTREME /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/E-ATX Asus

Gniazdo proceso...: Socket 1851

Obsługiwane typy procesor...: Intel Core Ultra Processors (series 2)

Uwagi do proceso...: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Format pły...: Extended-ATX

BI...: 2x 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME

Chipset płyty główn...: Intel® Z890

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8400+ (OC)

Uwagi do pamięci R...: Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 6x M.2

Uwagi do kontrolera SA...: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes, - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**, Intel® Z890 Chipset:, - DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), - DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110, (supports PCIe 4.0 x4 mode), Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10,, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5, M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2, When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2, will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 &, PCIEX16(G5)_2 will disabled

Gniazda karty graficzn...: HDMI, 2x Thunderbolt™ 5 (USB Type-C®)

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, Supports max. 8K@60Hz with DSC as specified in HDMI 2.1., Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommend, to chain-connect the monitors using a verified Thunderbolt™ cable, For resolution support please check DisplayPort 2.1 specs.bandwidth limited, by DisplayPort™ 2.1 with up to 77.4 Gbit/s, VGA resolution support depends on processors' or graphic cards' resolution

Zintegrowana karta dźwięko...: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękow...: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, Dedicated audio PCB layers, SupremeFX Shielding Technology, ESS ES9219 QUAD DAC, LED-illuminated audio jacks, Premium audio capacitors

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: Intel Core Ultra Processors (series 2):, - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**, Intel® Z890 Chipset:, - 1 x PCIe 4.0x4 slot, Please check the PCIe bifurcation table on the support site, M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled,, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4, are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled

Port L...: 1x 2,5 Gigabit LAN Realtek®, 1x 10 Gigabit LAN Marvell® AQtion

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 4

Maksymalna ilość portów USB 3...: 14

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 5x USB 3.1 + 2x USB 3.1 Type-C + 1x USB 3.2 Type-C + 2x Thunderbolt 5 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, 2x 4-pin Radiator Fan headers, 2x W_PUMP+ headers, WB_SENSOR header, 6-pin ARGB Gen 2 header to support 2x ARGB Gen 2 headers, 2x Addressable Gen 2 header, Alteration PCIe mode switch, 10-1 pin System Panel header, Thermal Sensor header, Wi-Fi module with an antenna connector, BIOS FlashBack button , BIOS Switch button, FlexKey button, Clear CMOS button(s)

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (m...: 305 X 277

Wyposażenie dodatko...: 1x 1-to-3 ARGB splitter cable, 1x 1-to-2 ARGB splitter cable, 2x 1-to-4 fan splitter cable, 2x ROG weave SATA 6G cable packages, 1x 3-in-1 Thermistor cables pack, 1x ROG DIMM.2 with heatsink, 1x M.2 pad package for ROG Q-DIMM.2, 2x Thermal pad for ROG Q-DIMM.2, 1x ASUS WiFi Q-Antenna

Informacje dodatko...: Operating System: Windows 11, Windows 10 64-bit
