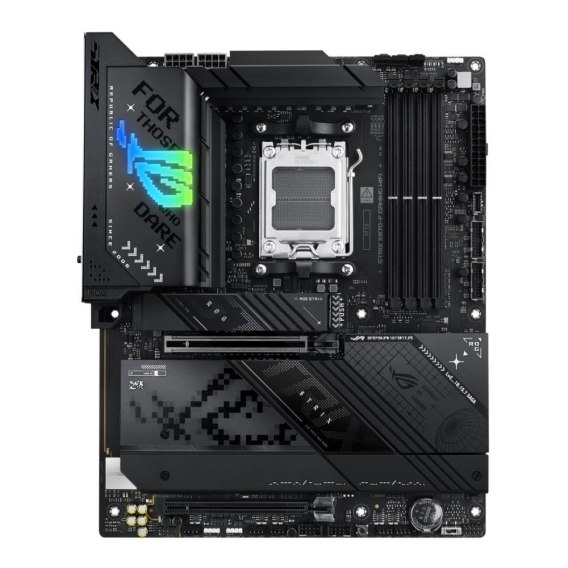

Płyta Asus ROG STRIX X870-F GAMING WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX Asus

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format pły...: ATX

BI...: 256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Chipset płyty główn...: AMD X870

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Uwagi do pamięci R...: Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series, Processors, ECC and Non-ECC, Un-buffered, Supports AMD Extended Profiles for, Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Zintegrowany kontroler SA...: Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SA...: AMD Ryzen 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), AMD Ryzen 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports), AMD X870 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - 2 x SATA 6Gb/s ports, AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and, SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series, M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD, device, PCIEX16(G5) will run x8 only, M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD, device, PCIEX16(G4) will be disabled, M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort, 2x USB4 Type-C

Uwagi do karty graficzn...: Please refer to AMD CPU specifications, Supports max. 8K@30Hz as specified in DisplayPort 1.4, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, Supports 4K@60Hz as specified in HDMI 2.1

Zintegrowana karta dźwięko...: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękow...: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, The LINE OUT port on the rear panel does not support spatial audio, If you wish to use spatial audio, make sure to connect your audio output, device to the audio jack on the front panel of your chassis or use a USB, interface audio device

Złącza PCI Express x...: 1

Złącza PCI Express ...: 2

Uwagi do złącz P...: AMD Ryzen 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD X870 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), Please check the PCIe bifurcation table on the support site, Specifications vary by CPU types, To ensure compatibility of the device installed, please refer to

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 4

Maksymalna ilość portów USB 3...: 15

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 4x USB 3.0 + 6x USB 3.1 + 2x USB4 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, For Windows 10, please note that no driver is available, refer to the Wi-Fi, chipset vendor's website for details, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: Wi-Fi module with an antenna connector, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, Alteration PCIe mode switch, Chassis intrusion header, CPU Over Voltage jumper, 10-1 pin System Panel header, Thermal Sensor header, Start button, BIOS FlashBack button , Clear CMOS button(s)

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 305 x 244

Wyposażenie dodatko...: 2x SATA 6Gb/s cables, 1x Thermal pad for M.2 22110, 1x ASUS WiFi Q-Antenna, 1x Cable ties package, 1x M.2 Q-Latch package, 1x M.2 Q-Slide package, 1x ROG key chain, 1x ROG Strix stickers, 4x M.2 rubber packages, 1x Quick start guide

Informacje dodatko...: Operating System: Windows 11
