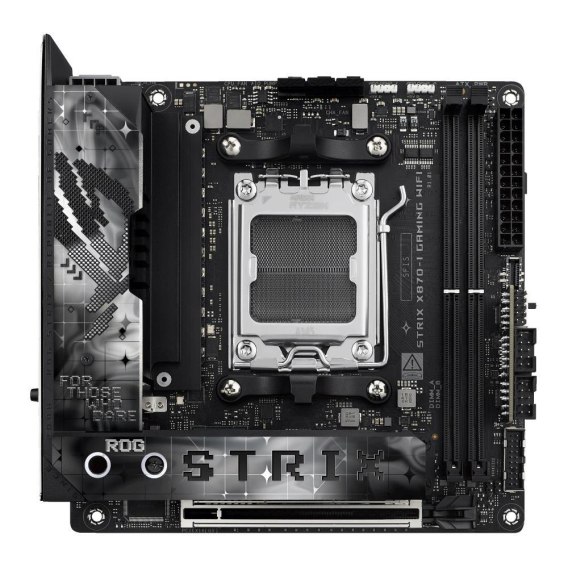

Płyta Asus ROG STRIX X870-I GAMING WIFI /AMD X870/DDR5/SATA3/M.2/WiFi/BT/PCIe5.0/AM5/mITX Asus

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format pły...: Mini-ITX

BI...: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty główn...: AMD X870

Ilość złącz pamięci DD...: 2

Maksymalna wielkość pamię...: 96 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8000+ (OC), DDR5-8400+ (OC), DDR5-8600+ (OC)

Uwagi do pamięci R...: ECC and Non-ECC Un-buffered DIMM*, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM, modules vary depending on the CPU and memory, configuration, for more information please refer to CPU/Memory, Support list under the Support tab of product information site, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Zintegrowany kontroler SA...: Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 2x M.2

Uwagi do kontrolera SA...: AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode), AMD X870 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4), AMD RAIDXpert2 Technology supports both PCIe and SATA RAID 0/1/10, and AMD Ryzen™ 9000 Series Desktop Processors additionally support RAID 5, Install ROG FPS Card to support 2 x SATA 6Gb/s ports

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, 2x USB4 Type-C

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, VGA resolution support depends on processors' or graphic cards' resolution

Gniazda karty dźwiękow...: 1x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: ROG Strix Hive II Audio Features:, - ROG Hyper-Grounding Technology, - E3 DAC, - Silver-plated audio jacks, - Dedicated audio PCB layers

Złącza PCI Express x...: 1

Uwagi do złącz P...: AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot, To ensure compatibility of the device installed, please refer to

Port L...: 1x 2,5 Gigabit LAN Intel®

Uwagi do karty sieciow...: ASUS LANGuard

Maksymalna ilość portów USB 2...: 5

Maksymalna ilość portów USB 3...: 6

Maksymalna ilość portów USB 4...: 2

Porty USB na panelu tyln...: 3x USB 2.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4

Gniazda USB na płycie główn...: 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetoo...: Bluetooth V5.4

Uwagi do WiFi / ...: Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate, Wi-Fi features may vary depending on the operating system

Port PS...: Port combo klawiatury/myszy PS/2

Port szeregowy (CO...: 1x port COM na panelu tylnym

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 2x Addressable Gen 2 header, Thermal Sensor header, CPU Over Voltage jumper, Wi-Fi module with an antenna connector

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (m...: 170 x 170

Wyposażenie dodatko...: 1 x Panel cable, 1 x ROG USB2.0 splitter cable, 2 x SATA 6Gb/s cables, 1 x ROG FPS Card, 1 x ROG STRIX HIVE II, 1 x USB Type-C® power connection cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package(s), 1 x ROG key chain, 1 x ROG Strix stickers, 1 x M.2 rubber package(s), 1 x Quick start guide

Informacje dodatko...: Operating System: Windows® 11 64-bit
