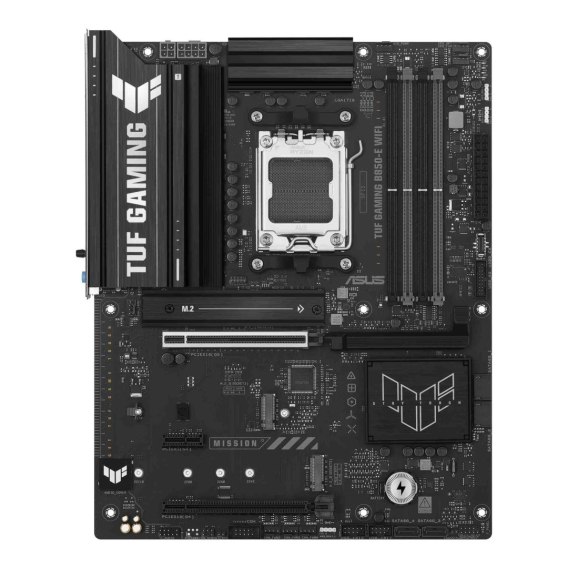

Płyta Asus TUF GAMING B850-E WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX Asus

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™ (AM5)

Uwagi do proceso...: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format pły...: ATX

BI...: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset płyty główn...: AMD B850

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-8000+ (OC)

Uwagi do pamięci R...: ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced, memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SA...: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4

Zintegrowana karta dźwięko...: Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features:, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio cover, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output.

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x1 mode), - 1 x PCIe 4.0 x1 slot, Specifications vary by CPU types

Port L...: 1x 2,5 Gigabit LAN Realtek®

Uwagi do karty sieciow...: TUF LANGuard

Maksymalna ilość portów USB 2...: 11

Maksymalna ilość portów USB 3...: 8

Porty USB na panelu tyln...: 3x USB 2.0 + 3x USB 3.0 + 1x USB 3.0 Type-C + 1x USB 3.2 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries, supported only in, Windows 11 or later., The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications.

Port PS...: Brak

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS header, Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 305 x 244

Wyposażenie dodatko...: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide

Zawiera baterię / akumulat...: Tak

Informacje dodatko...: Operating System: Windows 11, Windows 10 64-bit, Manageability: WOL by PME, PXE
