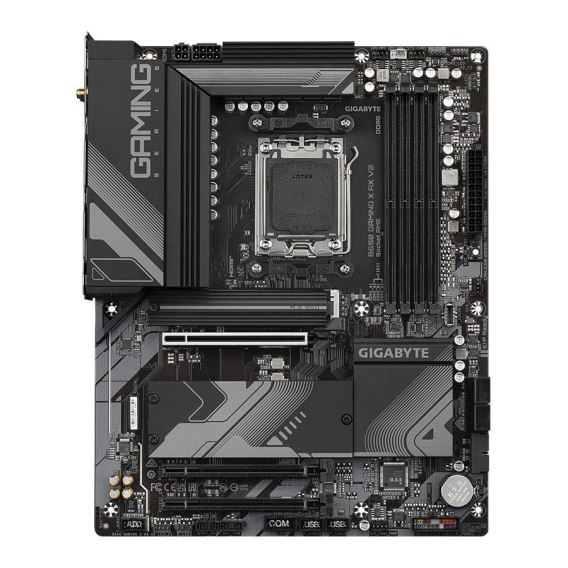

Płyta Gigabyte B650 GAMING X AX V2 /AMD X650/DDR5/SATA3/M.2/PCIe4.0/WiFi/BT/AM5/ATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: Support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

Format pły...: ATX

BI...: 256 Mbit flash, AMI UEFI BIOS PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Chipset płyty główn...: AMD B650

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 192 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)

Uwagi do pamięci R...: Support up to 192 GB (48 GB single DIMM capacity) of system memory, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme, Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,, type 25110/2580 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0, x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/2580 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack

Złącza PCI Express x...: 3

Uwagi do złącz P...: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, Chipset:, - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1, (PCIEX1_1/2)

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 7

Maksymalna ilość portów USB 3...: 10

Porty USB na panelu tyln...: 3x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Support for 11ax 160MHz wireless standard

Port PS...: Brak

Port szeregowy (CO...: 1x wewnętrzne gniazdo portu COM

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 2x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x RGB (RGBW) LED strip headers, CPU cooler LED strip/RGB LED strip extension cable header, Front panel header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R), Q-Flash Plus button

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 305 x 224

Opakowan...: BOX

Wyposażenie dodatko...: Norton® Internet Security (OEM version), LAN bandwidth management software

Informacje dodatko...: Windows® 11 64-bit, Windows® 10 64-bit, Trusted Platform Module header: for the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/, GC-TPM2.0 SPI V2 module only)
