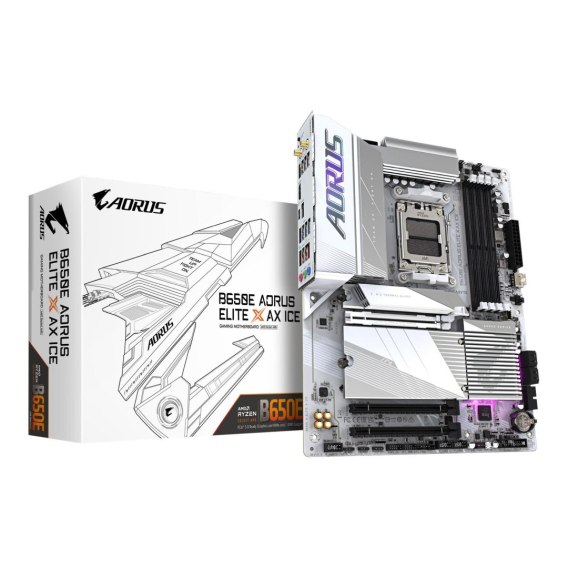

Płyta Gigabyte B650E AORUS ELITE X ICE /AMD B650/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX Gigabyte

Gniazdo proceso...: Socket AM5

Obsługiwane typy procesor...: AMD Ryzen™

Uwagi do proceso...: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format pły...: ATX

BI...: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty główn...: AMD B650

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6666 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)

Uwagi do pamięci R...: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme, Memory Profile (XMP) memory modules

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SA...: 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support, PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU,, supporting Socket 3, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficzn...: 2x HDMI, USB Type-C/DisplayPort

Uwagi do karty graficzn...: Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports, - 1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 1.4 version, - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video, outputs and a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR, Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwięko...: Realtek® HD Audio CODEC

Gniazda karty dźwiękow...: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękow...: You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting

Złącza PCI Express x...: 3

Uwagi do złącz P...: CPU:, - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, Chipset:, - 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running, at x1 (PCIEX1_1/2)

Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 11

Porty USB na panelu tyln...: 4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.0):, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard, Intel® Wi-Fi 6E AX210 (PCB rev. 1.1):, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Trusted Platform Module header, Reset button, Reset jumper, Clear CMOS jumper

Gniazdo zasilan...: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Wymiary [S x W] (m...: 305 x 244

Opakowan...: BOX

Informacje dodatko...: Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software, System operacyjny:, - Support for Windows 11 64-bit, - Support for Windows 10 64-bit, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0, / GC-TPM2.0 SPI V2 module only), This USB Type-C® port supports a maximum speed of 40Gbps as a USB4 port, when pairing the Ryzen 8000 series processors.
