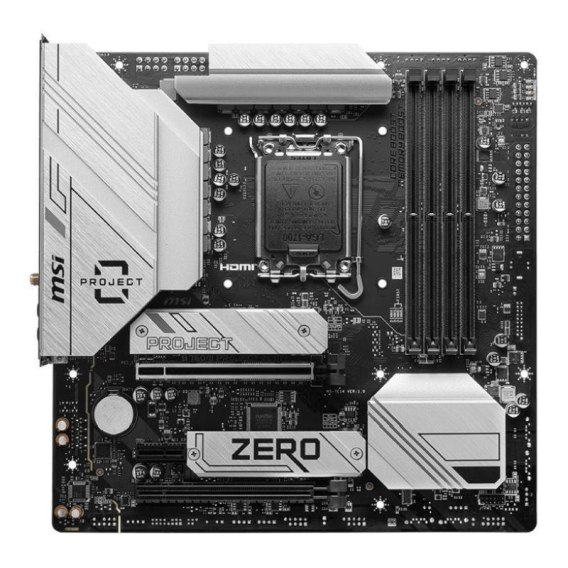

Płyta MSI B760M PROJECT ZERO /B760/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/mATX MSI

Gniazdo proceso...: Socket 1700

Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)

Format pły...: M-ATX

Chipset płyty główn...: Intel® B760

Ilość złącz pamięci DD...: 4

Maksymalna wielkość pamię...: 256 GB

Tryb pracy pamięci R...: Dual Channel

Standard pamię...: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800+ (OC)

Uwagi do pamięci R...: Max. overclocking frequency:, - 1DPC 1R Max speed up to 7800+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® Extreme Memory Profile, Supports non-ECC, un-buffered memory

Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2

Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4,, supports 2280/2260/2242 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 2280/2260/2242 devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Gniazda karty graficzn...: HDMI, DisplayPort

Uwagi do karty graficzn...: Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz, Support DP 1.4, maximum resolution of 4K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed

Zintegrowana karta dźwięko...: Realtek® ALC 897 7.1-Channel High Definition Audio CODEC

Gniazda karty dźwiękow...: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF

Złącza PCI Express x...: 2

Złącza PCI Express ...: 1

Uwagi do złącz P...: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Port L...: 1x 2,5 Gigabit LAN Intel®

Maksymalna ilość portów USB 2...: 8

Maksymalna ilość portów USB 3...: 9

Porty USB na panelu tyln...: 4x USB 2.0 + 3x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Port Wi-...: IEEE 802.11a/b/g/n/ac/ax

Port Bluetoo...: Bluetooth V5.3

Uwagi do WiFi / ...: Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA, Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready, in Windows 11, Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11

Port PS...: Brak

Port szeregowy (CO...: Brak

Port równoległy (LP...: Brak

Inne porty i gniaz...: CPU Fan, Pump Fan, 4x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, TBT connector, 2x Addressable V2 RGB LED connector, 2x RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports

Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (m...: 243,84 x 243,84

Opakowan...: BOX

Wyposażenie dodatko...: SATA Cables, EZ M.2 clips, Cable Sticker, Wi-Fi Antenna, M.2 Screw / Standoff Set, Quick installation Guide, European Union Regulatory Notice

Informacje dodatko...: Support for Windows® 11 64-bit, Windows® 10 64-bit, Support TPM 2.0
