Darmowa dostawa od 140 PLN

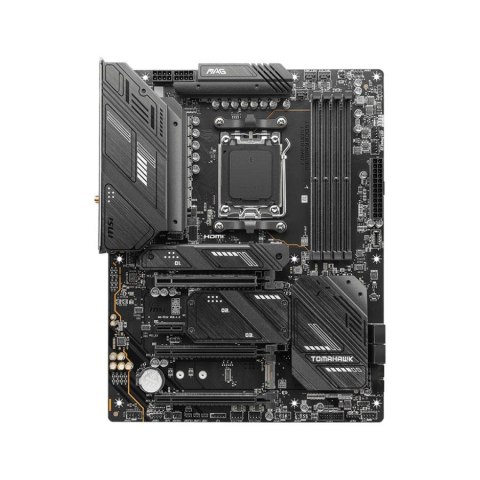

Płyta MSI MAG X670E TOMAHAWK WIFI /AMD X670/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/AM5/ATX MSI
Symbol:
MAG X670E TOMAHAWK WIFI
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
| Zostaw telefon |
|
Gniazdo proceso...: Socket AM5
Obsługiwane typy procesor...: AMD Ryzen™ (AM5)
Uwagi do proceso...: - Supports AMD Ryzen™ 7000 Series Desktop Processors
Format pły...: ATX
Chipset płyty główn...: AMD X670
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-6000+ (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5400 (OC), DDR5-5200 (OC), DDR5-5000 (OC), DDR5-4800
Uwagi do pamięci R...: Max. overclocking frequency:, - 1DPC 1R Max speed up to 6000+ MHz, - 1DPC 2R Max speed up to 6000+ MHz, - 2DPC 1R Max speed up to 6000+ MHz, - 2DPC 2R Max speed up to 5400+ MHz, Supports non-ECC, un-buffered memory, Supports AMD EXPO
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 4x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 22110/2280 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, installing device in the PCI_E4 slot.
Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficzn...: HDMI, DisplayPort, USB Type-C/DisplayPort
Uwagi do karty graficzn...: - Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz, - Supports DP1.4, maximum resolution of 4K 60Hz, - Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz, - Available only on processors featuring integrated graphics., - Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwięko...: Realtek® ALC 1200 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 5x Audio Jack, Wyjście optyczne S/PDIF
Złącza PCI Express x...: 3
Złącza PCI Express ...: 1
Uwagi do złącz P...: - Supports x16/x4/x2, - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU), - PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset), - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, installing device in the PCI_E4 slot
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Maksymalna ilość portów USB 2...: 4
Maksymalna ilość portów USB 3...: 13
Porty USB na panelu tyln...: 4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + USB 3.2 Type-C
Gniazda USB na płycie główn...: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax
Port Bluetoo...: Bluetooth V5.3
Uwagi do WiFi / ...: - AMD Wi-Fi 6E, - The Wireless module is pre-installed in the M.2 (Key-E) slot, - Supports MU-MIMO TX/RX, - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz, - Wi-Fi 6E 6GHz may depend on every country's regulations and, will be ready in Windows 11, - Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, Tuning Controller Connector, 2x Addressable V2 RGB LED connector, 2x RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, Przycisk Flash BIOS na panelu tylnym
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 234,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: Eoropean Union Regulatory Notice, Quick Installation Guide,, 3x M.2 Clip, 2x SATA Cable, M.2 Plate Screw, Wi-Fi Antenna, Cable Stickers
Informacje dodatko...: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Chassis Intrusion (JCI), Support TPM 2.0, Support for Windows® 11 64-bit, Windows® 10 64-bit
Obsługiwane typy procesor...: AMD Ryzen™ (AM5)
Uwagi do proceso...: - Supports AMD Ryzen™ 7000 Series Desktop Processors
Format pły...: ATX
Chipset płyty główn...: AMD X670
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-6000+ (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5400 (OC), DDR5-5200 (OC), DDR5-5000 (OC), DDR5-4800
Uwagi do pamięci R...: Max. overclocking frequency:, - 1DPC 1R Max speed up to 6000+ MHz, - 1DPC 2R Max speed up to 6000+ MHz, - 2DPC 1R Max speed up to 6000+ MHz, - 2DPC 2R Max speed up to 5400+ MHz, Supports non-ECC, un-buffered memory, Supports AMD EXPO
Zintegrowany kontroler SA...: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 4x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 22110/2280 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, installing device in the PCI_E4 slot.
Wbudowana karta graficz...: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficzn...: HDMI, DisplayPort, USB Type-C/DisplayPort
Uwagi do karty graficzn...: - Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz, - Supports DP1.4, maximum resolution of 4K 60Hz, - Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz, - Available only on processors featuring integrated graphics., - Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwięko...: Realtek® ALC 1200 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękow...: Wewnętrzne gniazdo audio przedniego panelu, 5x Audio Jack, Wyjście optyczne S/PDIF
Złącza PCI Express x...: 3
Złącza PCI Express ...: 1
Uwagi do złącz P...: - Supports x16/x4/x2, - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU), - PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset), - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, installing device in the PCI_E4 slot
Port L...: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Maksymalna ilość portów USB 2...: 4
Maksymalna ilość portów USB 3...: 13
Porty USB na panelu tyln...: 4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + USB 3.2 Type-C
Gniazda USB na płycie główn...: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax
Port Bluetoo...: Bluetooth V5.3
Uwagi do WiFi / ...: - AMD Wi-Fi 6E, - The Wireless module is pre-installed in the M.2 (Key-E) slot, - Supports MU-MIMO TX/RX, - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz, - Wi-Fi 6E 6GHz may depend on every country's regulations and, will be ready in Windows 11, - Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, Tuning Controller Connector, 2x Addressable V2 RGB LED connector, 2x RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, Przycisk Flash BIOS na panelu tylnym
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 234,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: Eoropean Union Regulatory Notice, Quick Installation Guide,, 3x M.2 Clip, 2x SATA Cable, M.2 Plate Screw, Wi-Fi Antenna, Cable Stickers
Informacje dodatko...: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Chassis Intrusion (JCI), Support TPM 2.0, Support for Windows® 11 64-bit, Windows® 10 64-bit
Informacje dodatko...:
1x Chassis Intrusion (JCI), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), Support for Windows® 11 64-bit, Windows® 10 64-bit, Support TPM 2.0
Wyposażenie dodatko...:
3x M.2 Clip, 2x SATA Cable, M.2 Plate Screw, Wi-Fi Antenna, Cable Stickers, Eoropean Union Regulatory Notice, Quick Installation Guide,
Wymiary [S x W] (m...:
234,84 x 304,8
Opakowan...:
BOX
Port Bluetoo...:
Bluetooth V5.3
Format pły...:
ATX
Port L...:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)
Port Wi-...:
IEEE 802.11a/b/g/n/ac/ax
Maksymalna wielkość pamię...:
192 GB
Chipset płyty główn...:
AMD X670
Wbudowana karta graficz...:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Standard pamię...:
DDR5-4800, DDR5-5000 (OC), DDR5-5200 (OC), DDR5-5400 (OC), DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000+ (OC)
Gniazdo proceso...:
Socket AM5
Obsługiwane typy procesor...:
AMD Ryzen™ (AM5)
Uwagi do proceso...:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
Ilość złącz pamięci DD...:
4
Tryb pracy pamięci R...:
Dual Channel
Uwagi do pamięci R...:
- 1DPC 1R Max speed up to 6000+ MHz, - 1DPC 2R Max speed up to 6000+ MHz, - 2DPC 1R Max speed up to 6000+ MHz, - 2DPC 2R Max speed up to 5400+ MHz, Max. overclocking frequency:, Supports AMD EXPO, Supports Non-ECC, Un-buffered memory
Zintegrowany kontroler SA...:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 4x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SA...:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, installing device in the PCI_E4 slot., supports 22110/2280 devices, supports 2280/2260 devices
Gniazda karty graficzn...:
DisplayPort, HDMI, USB Type-C/DisplayPort
Uwagi do karty graficzn...:
- Available only on processors featuring integrated graphics., - Graphics specifications may vary depending on the CPU installed., - Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz, - Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz, - Supports DP1.4, maximum resolution of 4K 60Hz
Zintegrowana karta dźwięko...:
Realtek® ALC 1200 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękow...:
5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x...:
3
Złącza PCI Express ...:
1
Uwagi do złącz P...:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU), - PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when, - PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset), - Supports x16/x4/x2, installing device in the PCI_E4 slot
Maksymalna ilość portów USB 2...:
4
Maksymalna ilość portów USB 3...:
13
Porty USB na panelu tyln...:
4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + USB 3.2 Type-C
Gniazda USB na płycie główn...:
4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port PS...:
Brak
Port szeregowy (CO...:
Brak
Inne porty i gniaz...:
2x Addressable V2 RGB LED connector, 2x RGB LED connector, 4x EZ Debug LED, 6x System Fan, CPU Fan, Gniazdo modułu TPM, Przycisk Flash BIOS na panelu tylnym, Pump Fan, Tuning Controller Connector
Gniazdo zasilan...:
ATX (24-pin) + 2x ATX12V (8-pin)
Port równoległy (LP...:
Brak
Uwagi do WiFi / ...:
- AMD Wi-Fi 6E, - Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11, - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz, - Supports MU-MIMO TX/RX, - The Wireless module is pre-installed in the M.2 (Key-E) slot, - Wi-Fi 6E 6GHz may depend on every country's regulations and, will be ready in Windows 11
Zawiera baterię / akumulat...:
Tak
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
