Darmowa dostawa od 140 PLN

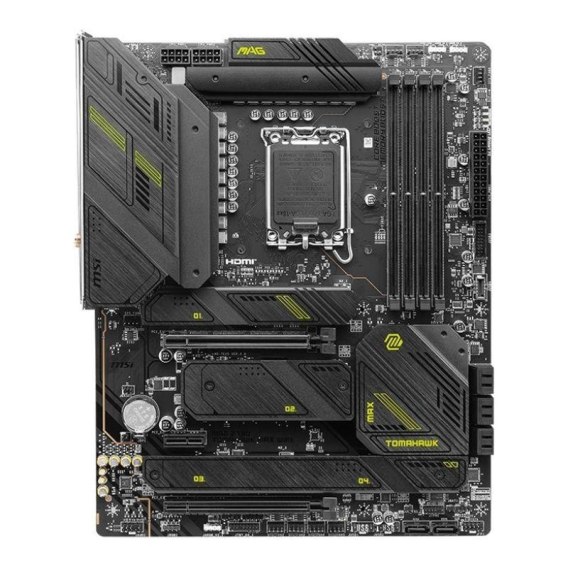

Płyta MSI MAG Z790 TOMAHAWK MAX WIFI /Z790/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX MSI
Symbol:
MAG Z790 TOMAHAWK MAX WIFI
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
| Zostaw telefon |
|
Gniazdo proceso...: Socket 1700
Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Format pły...: ATX
Chipset płyty główn...: Intel® Z790
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800+ (OC)
Uwagi do pamięci R...: Max. overclocking frequency:, - 1DPC 1R Max speed up to 7800+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP3.0 OC, Supports non-ECC, un-buffered memory
Zintegrowany kontroler SA...: Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 22110/2280/2260/2242 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 2280/2260/2242 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 2280/2260/2242 devices, SATA_A1_A2 do not support RAID function
Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Gniazda karty graficzn...: HDMI, DisplayPort
Uwagi do karty graficzn...: Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz, Support DP 1.4, maximum resolution of 8K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed
Zintegrowana karta dźwięko...: Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC
Gniazda karty dźwiękow...: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x...: 2
Złącza PCI Express ...: 1
Uwagi do złącz P...: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Port L...: 1x 2,5 Gigabit LAN Intel®
Maksymalna ilość portów USB 2...: 4
Maksymalna ilość portów USB 3...: 13
Porty USB na panelu tyln...: 4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: Intel® Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 SV3, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details. Bluetooth 5.4 support schedule depends on, MSFT Windows 11 plan
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, TBT connector, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, Przycisk Flash BIOS na panelu tylnym, Przycisk Clear CMOS na panelu tylnym
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 243,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: 2x SATA Cables, Wi-Fi Antenna, EZ M.2 Clips, Cable Sticker, USB Drive, European Union Regulatory Notice, Quick Installation Guide
Informacje dodatko...: Support for Windows® 11 64-bit, Windows® 10 64-bit, Support TPM 2.0
Obsługiwane typy procesor...: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Format pły...: ATX
Chipset płyty główn...: Intel® Z790
Ilość złącz pamięci DD...: 4
Maksymalna wielkość pamię...: 192 GB
Tryb pracy pamięci R...: Dual Channel
Standard pamię...: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800+ (OC)
Uwagi do pamięci R...: Max. overclocking frequency:, - 1DPC 1R Max speed up to 7800+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP3.0 OC, Supports non-ECC, un-buffered memory
Zintegrowany kontroler SA...: Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SA...: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 22110/2280/2260/2242 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 2280/2260/2242 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 2280/2260/2242 devices, SATA_A1_A2 do not support RAID function
Wbudowana karta graficz...: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Gniazda karty graficzn...: HDMI, DisplayPort
Uwagi do karty graficzn...: Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz, Support DP 1.4, maximum resolution of 8K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed
Zintegrowana karta dźwięko...: Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC
Gniazda karty dźwiękow...: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x...: 2
Złącza PCI Express ...: 1
Uwagi do złącz P...: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Port L...: 1x 2,5 Gigabit LAN Intel®
Maksymalna ilość portów USB 2...: 4
Maksymalna ilość portów USB 3...: 13
Porty USB na panelu tyln...: 4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-...: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetoo...: Bluetooth V5.4
Uwagi do WiFi / ...: Intel® Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 SV3, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details. Bluetooth 5.4 support schedule depends on, MSFT Windows 11 plan
Port PS...: Brak
Port szeregowy (CO...: Brak
Port równoległy (LP...: Brak
Inne porty i gniaz...: CPU Fan, Pump Fan, 6x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, TBT connector, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, Przycisk Flash BIOS na panelu tylnym, Przycisk Clear CMOS na panelu tylnym
Gniazdo zasilan...: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (m...: 243,84 x 304,8
Opakowan...: BOX
Wyposażenie dodatko...: 2x SATA Cables, Wi-Fi Antenna, EZ M.2 Clips, Cable Sticker, USB Drive, European Union Regulatory Notice, Quick Installation Guide
Informacje dodatko...: Support for Windows® 11 64-bit, Windows® 10 64-bit, Support TPM 2.0
Informacje dodatko...:
Support for Windows® 11 64-bit, Windows® 10 64-bit, Support TPM 2.0
Wyposażenie dodatko...:
2x SATA Cables, Wi-Fi Antenna, EZ M.2 Clips, Cable Sticker, USB Drive, European Union Regulatory Notice, Quick Installation Guide
Wymiary [S x W] (m...:
243,84 x 304,8
Opakowan...:
BOX
Port Bluetoo...:
Bluetooth V5.4
Format pły...:
ATX
Port L...:
1x 2,5 Gigabit LAN Intel®
Port Wi-...:
IEEE 802.11a/b/g/n/ac/ax/be
Maksymalna wielkość pamię...:
192 GB
Chipset płyty główn...:
Intel® Z790
Wbudowana karta graficz...:
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Standard pamię...:
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800+ (OC)
Gniazdo proceso...:
Socket 1700
Obsługiwane typy procesor...:
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i3 14th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i5 14th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i7 14th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Core i9 14th Generation, Intel Pentium™ (Socket 1700)
Ilość złącz pamięci DD...:
4
Tryb pracy pamięci R...:
Dual Channel
Uwagi do pamięci R...:
- 1DPC 1R Max speed up to 7800+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, Max. overclocking frequency:, Supports Intel® XMP3.0 OC, Supports Non-ECC, Un-buffered memory
Zintegrowany kontroler SA...:
Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SA...:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, SATA_A1~A2 do not support RAID function, supports 22110/2280/2260/2242 devices, supports 2280/2260 devices, supports 2280/2260/2242 devices
Gniazda karty graficzn...:
DisplayPort, HDMI
Uwagi do karty graficzn...:
Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed, Support DP 1.4, maximum resolution of 8K 60Hz, Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz
Zintegrowana karta dźwięko...:
Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC
Gniazda karty dźwiękow...:
5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x...:
2
Złącza PCI Express ...:
1
Uwagi do złącz P...:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Maksymalna ilość portów USB 2...:
4
Maksymalna ilość portów USB 3...:
13
Porty USB na panelu tyln...:
4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie główn...:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS...:
Brak
Port szeregowy (CO...:
Brak
Inne porty i gniaz...:
2x Front Panel, 3x Addressable V2 RGB LED connector, 4x EZ Debug LED, 6x System Fan, CPU Fan, Gniazdo modułu TPM, Przycisk Clear CMOS na panelu tylnym, Przycisk Flash BIOS na panelu tylnym, Pump Fan, RGB LED connector, TBT connector, Tuning Controller Connector, Złącze czujnika otwarcia obudowy
Gniazdo zasilan...:
ATX (24-pin) + 2x ATX12V (8-pin)
Port równoległy (LP...:
Brak
Uwagi do WiFi / ...:
6GHz band support may depend on every country's regulations and Wi-Fi 7 (32259), Intel® Wi-Fi 7, MSFT Windows 11 plan, Supports Bluetooth® 5.4**, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details. Bluetooth 5.4 support schedule depends on, will be ready in Windows 11 SV3
Zawiera baterię / akumulat...:
Tak
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
